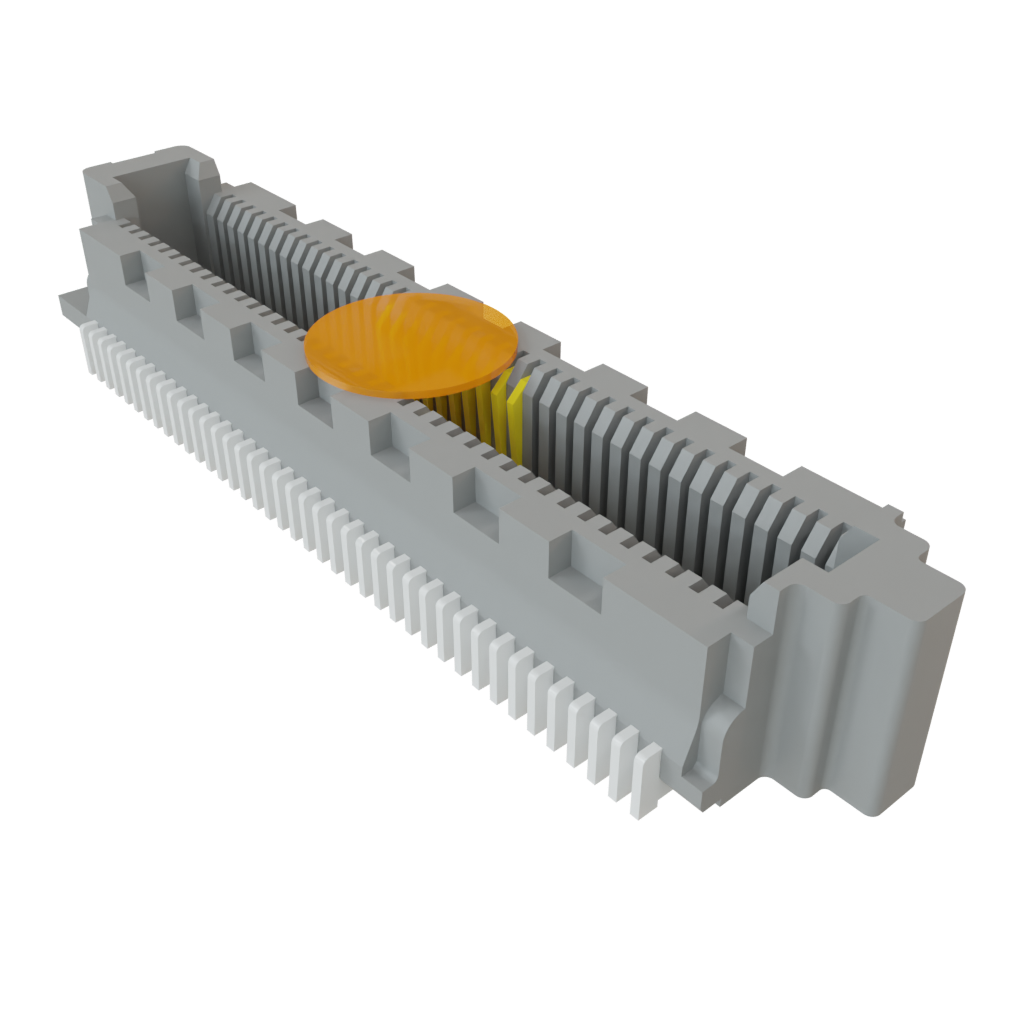

SS4-40-3.00-L-D-K-TR
SnapVerified
80 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Availability: In Stock
Country of Origin: Vietnam
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SS4-40-3.00-L-D-K-TR by Samtec Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SS4-40-3.00-L-D-K-TR
| Part Name | SS4-40-3.00-L-D-K-TR |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | SS4 |
| Country of Origin | Vietnam |
| Packaging | Tape & Reel |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.3 (A) |
| Mounting Type | Surface Mount |
| Series | SS4 |
| Body Orientation | Straight |
| Pitch | 0.4 (mm) |
| Number Of Rows | 2 |
| Termination Method | Solder |
| Number Of Contacts | 80 |
| Type | Board to Board |
| Contact Material | Bronze |
