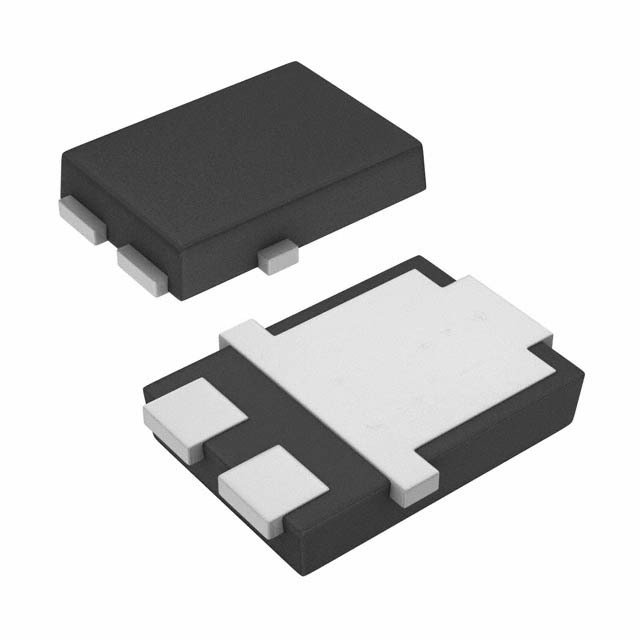

SS8PH10-M3/86A
Diode Schottky 100 V 8A Surface Mount TO-277A (SMPC)
Availability: Out of Stock
Package Type: TO-277
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SS8PH10-M3/86A by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SS8PH10-M3/86A
| Part Name | SS8PH10-M3/86A |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Diode Technology | Schottky |
| Maximum Forward Voltage Drop (V) | 900 (mV) |
| Rectifier Type | Schottky Rectifier |
| Package Type | TO-277A |
| Peak Reverse Repetitive Voltage (V) | 100 (V) |
| Diode Type | Schottky |
| Maximum Continuous Forward Current (A) | 8 (A) |
| Diode Configuration | Single |
| Pin Count | 3 |
| Peak Non Repetitive Forward Surge Current (A) | 150 (A) |
| Number Of Elements Per Chip | 1 |
No issues have been reported for the SS8PH10-M3/86A
