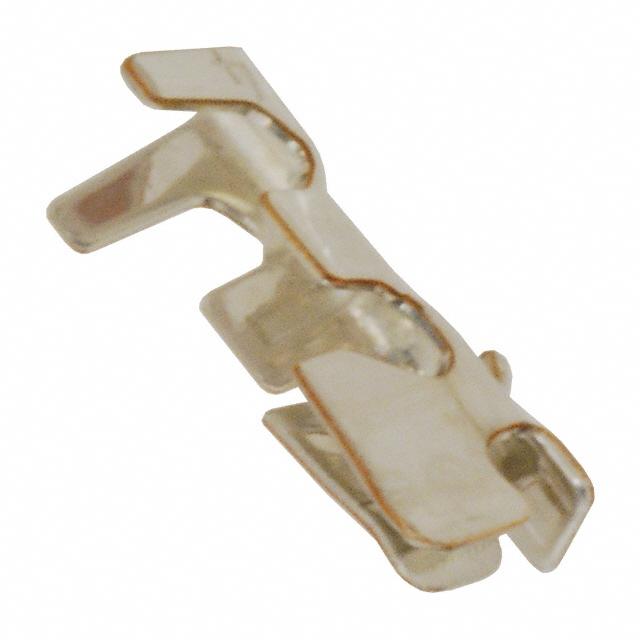

SSH-003T-P0.2-H
Socket Contact Tin 28-32 AWG Crimp -
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SSH-003T-P0.2-H by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SSH-003T-P0.2-H
| Part Name | SSH-003T-P0.2-H |
| Manufacturer | JST Sales |
| RoHS | True |
| Life Cycle Status | New at Mouser |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.03 (mm²) |
| Maximum Wire Size Mm | 0.08 (mm²) |
| Contact Plating | Tin |
| Maximum Current (A) | 1 (A) |
| Maximum Contact Resistance | 40 (mΩ) |
| Series | SSH |
| Termination Method | Crimp |
| Minimum Wire Size Awg | 32 (AWG) |
| Gender | Male |
| Minimum Operating Temperature | -25 (°C) |
| Distrelec Product Id | 30396622 |
| For Use With | LBT and SH Connector Housings |
| Maximum Wire Size Awg | 28 (AWG) |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Phosphor Bronze |
