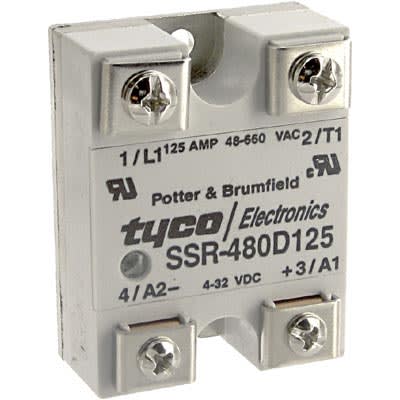

SSR-480D125
Relay, SSR, Zero-Switching, SPST-NO, Cur-Rtg 125A, Ctrl-V 3-32DC, Vol-Rtg 480V | TE Connectivity SSR-480D125
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SSR-480D125 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

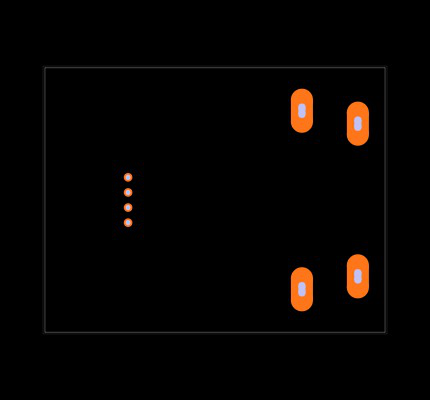

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SSR-480D125
| Part Name | SSR-480D125 |
| Manufacturer | TE Connectivity |
| Dimensions (L x W x H) (Approximate) | 1.772 x 2.276 x 1.709 |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | 98 |
| Switch Arrangement | 1 Form A (SPST-NO) |
| Contact Arrangement | 1 Form A (SPST-NO) |
| R-Switch & slimSSR Relays | No |
| TE Internal Number | 2-1393030-9 |
| Output Type | AC |
| Output Voltage (Max) (V) | 660 |
| Input Voltage (V) | 4 – 32 |
| RoHS | True |
| Relay Mounting Type | Chassis Mount |
| Case Color | Black |
| Coupling | Optical |
| Operating Temperature Range | -30 – 80 |
| Output Current Rating (A) | .1 – 125 |
| Input Voltage Typical (V) | 4 – 32 |
| Category | Relays |
| Output Current (Min) (A) | .1 |
| Power Relay Type | Solid State |
| Output Voltage Rating (AC Relays) (V) | 48 – 660 |
| Relay Housing Style | Hockey Puck |
| Relay Termination Type | Screws |
| Output Switching | Zero |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 57.15 x 44.45 x 22.1 (mm) |
| Maximum Load Voltage (V) | 660 V rms |
| Output Device | Paired SCR |
| Load Voltage Range (V) | 48 → 660 (Vrms) |
| Minimum Control Voltage (V) | 4 V dc |
| Package Style | Hockey Puck |
| Off State Leakage Current (A) | 0.1 mA |
| Switching Type | Zero Crossing |
| Maximum Operating Temperature | +80 (°C) |
| Terminal Type | Screw |
| Minimum Load Current (A) | 0.1 A |
| Operating Temperature Range | -20 → +80 (°C) |
| Control Voltage Range (V) | 4 → 32 V dc |
| Contact Configuration | SPST |
| Length | 57.15 (mm) |
| Maximum Turn On Time | 8.3 ms |
| Maximum Load Current (A) | 125 A |
| Mounting Type | Chassis Mount |
| Depth | 44.45 (mm) |
| Height | 22.1 (mm) |
| Minimum Operating Temperature | -20 (°C) |
| Maximum Control Voltage (V) | 32 V dc |
| Minimum Load Voltage (V) | 48 V rms |
