SSSS810701
Slide Switch • Rating (max.): 0.3 A 5 VDC • Poles: 1 • Positions: 2 • Travel : 1.5 mm • Operating direction: Horizontal
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SSSS810701 by ALPS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

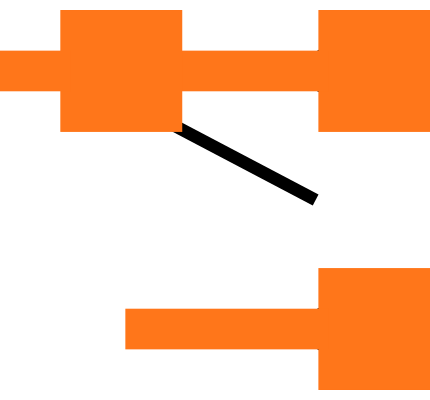

Symbol
No web preview
This Symbol is Available for

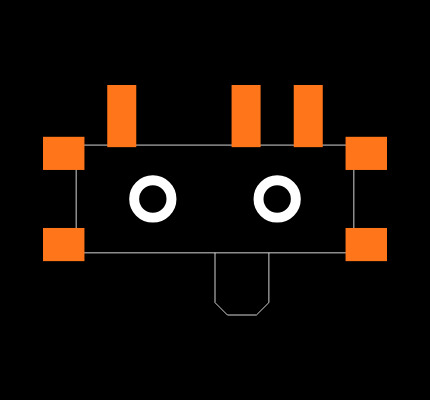

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SSSS810701
| Part Name | SSSS810701 |
| Manufacturer | ALPS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Resistance | 130 (After Lifetime) mΩ, 70 (Initial) mΩ |
| Dimensions | 6.7 x 4.1 x 1.9 (mm) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 5 (V dc) |
| Contact Current Rating (A) | 300 mA |
| Operating Temperature Range | -40 → +85 (°C) |
| Length | 6.7 (mm) |
| Contact Configuration | SPDT |
| Width | 4.1 (mm) |
| Depth | 1.9 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Distrelec Product Id | 30423946 |
| Terminal Type | Solder |
| Actuator Type | Slide |
| Maximum Operating Temperature | +85 (°C) |
| Mechanical Life | 10000 (Cycles) |
| Switch Operation | Latching |
Inventory for the SSSS810701 by ALPS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,142
|
|
Visit Site | |
|
★ Featured
|
1,101
|
|
Visit Site | |
|
★ Featured
|
13,000
|
1,495 x $0.20
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
2,778
|
|
Visit Site | |
| CoreStaff |
4,500
|
|
Visit Site | |
| Onlinecomponents |
4,000
|
|
Visit Site | |
| RS UK |
80
|
|
Visit Site | |
| TTI Europe |
4,500
|
|
Visit Site | |
| Verical |
2,500
|
2,500 x $0.21
|
Visit Site |
No issues have been reported for the SSSS810701
If you experienced any issues with the symbol or footprint, please report it.
