SSSS812201
Slide Switch ; Rating (max.): 0.3 A 5 VDC ; Poles: 1 ; Positions: 3 ; Travel : 1.5 mm
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SSSS812201 by ALPS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

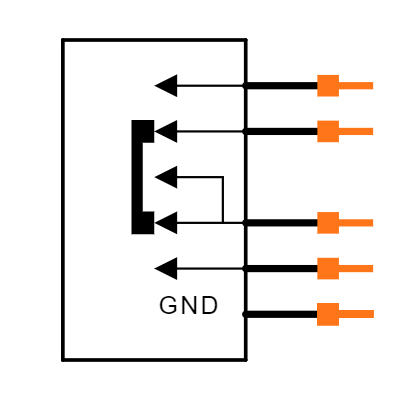

Symbol
No web preview
This Symbol is Available for

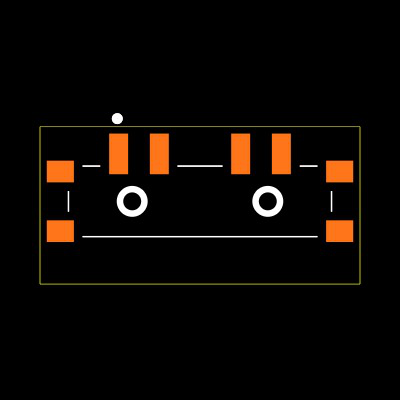

Footprint
No web preview
This Footprint is Available for

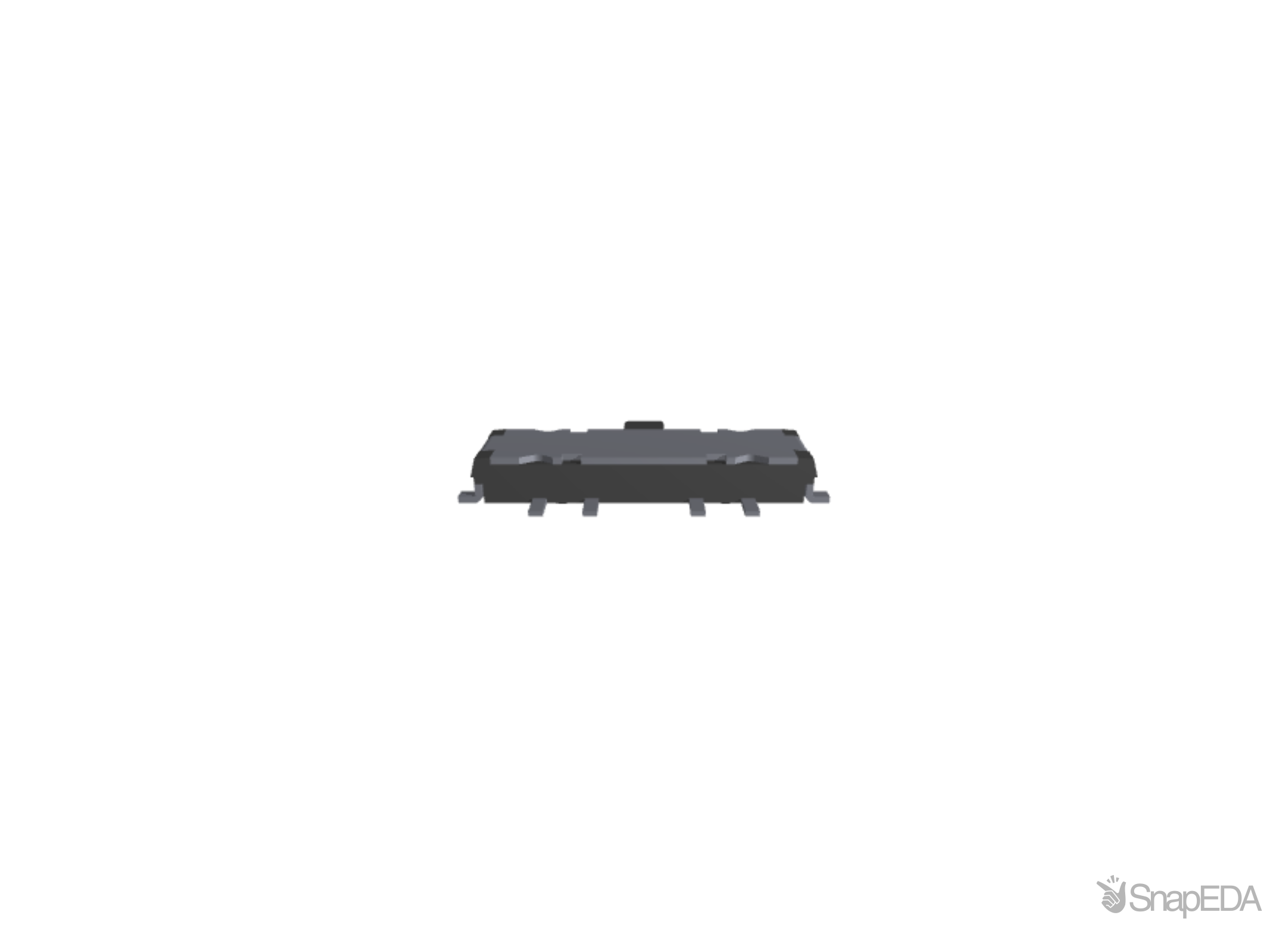

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SSSS812201
| Part Name | SSSS812201 |
| Manufacturer | ALPS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Resistance | 130 (After Lifetime) mΩ, 70 (Initial) mΩ |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +85 (°C) |
| Contact Current Rating (A) | 300 mA |
| Voltage Rating (V) | 5 (V dc) |
| Depth | 1.9 (mm) |
| Width | 4.1 (mm) |
| Length | 9.7 (mm) |
| Dimensions | 9.7 x 4.1 x 1.9 (mm) |
| Actuator Type | Slide |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Solder |
| Switch Operation | Latching |
Inventory for the SSSS812201 by ALPS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,543
|
|
Visit Site | |
|
★ Featured
|
121,220
|
2,470 x $0.12
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
3,690
|
|
Visit Site | |
| CoreStaff |
400
|
|
Visit Site | |
| Onlinecomponents |
9,000
|
|
Visit Site | |
| Relay Specialties |
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| Verical |
200
|
|
Visit Site |
No issues have been reported for the SSSS812201
