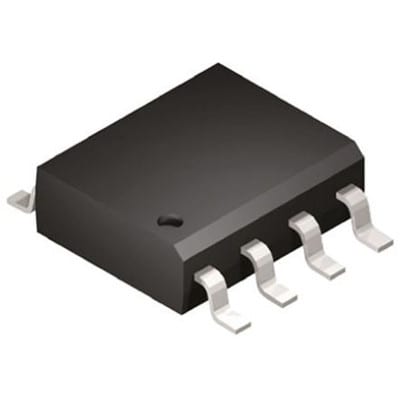

SST25VF016B-50-4I-S2AF
2.7V to 3.6V 16Mbit SPI Serial Flash8 SOIJ .208in TUBE | Microchip Technology Inc. SST25VF016B-50-4I-S2AF
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SST25VF016B-50-4I-S2AF by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

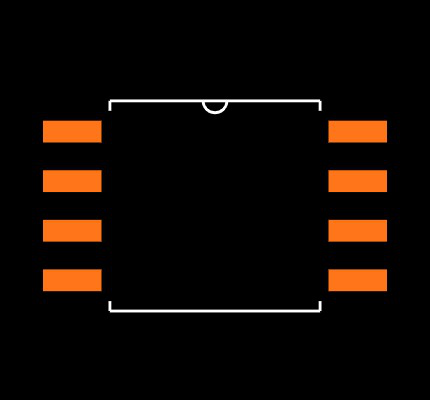

Footprint
No web preview
This Footprint is Available for

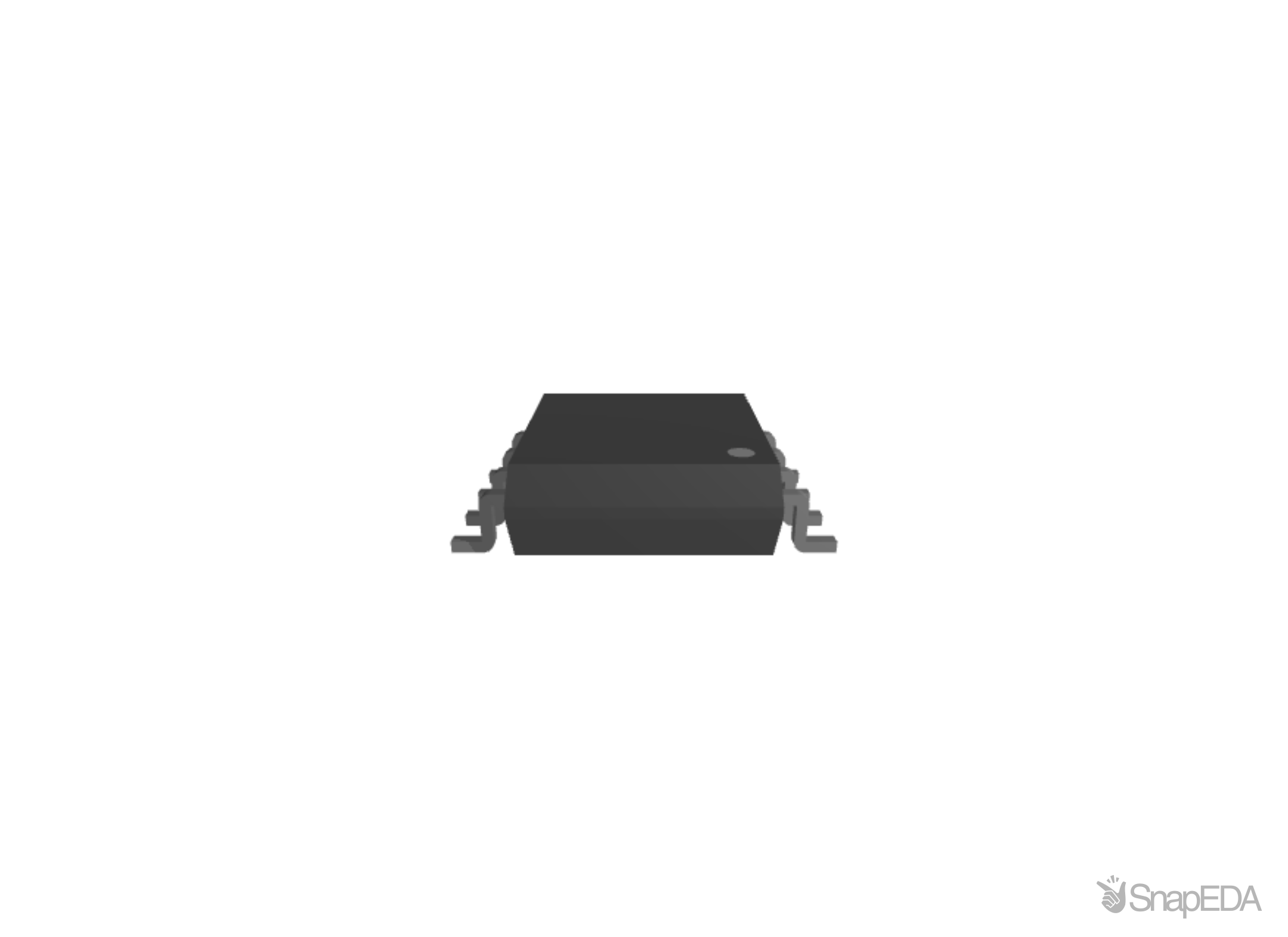

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SST25VF016B-50-4I-S2AF
| Part Name | SST25VF016B-50-4I-S2AF |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Words | 2M |
| Dimensions | 5.4 x 5.4 x 1.91 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Series | SST25 |
| Organisation | 2M x 8 bit |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Number Of Bits Per Word | 8 (bit) |
| Cell Type | Split Gate |
| Width | 5.4 (mm) |
| Length | 5.4 (mm) |
| Memory Size | 16 (Mbit) |
| Package Type | SOIC |
| Interface Type | SPI |
| Minimum Operating Temperature | -40 °C |
| Block Organisation | Symmetrical |
| Maximum Random Access Time | 8 (ns) |
| Mounting Type | Surface Mount |
| Height | 1.91 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
