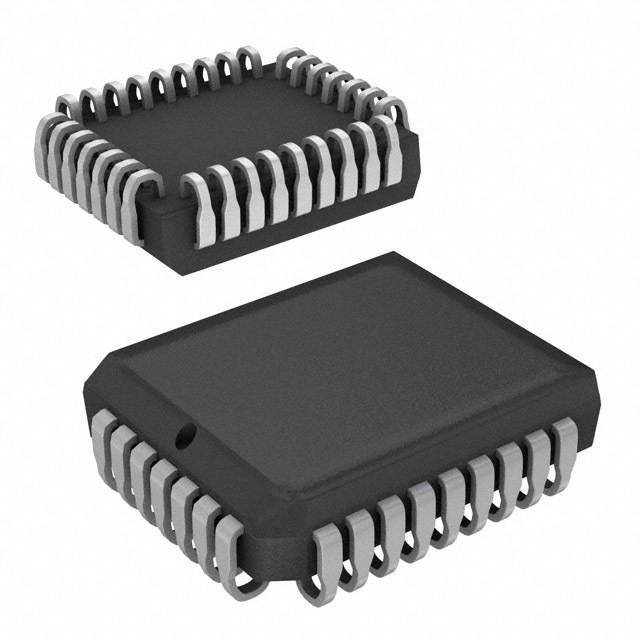

SST39SF010A-70-4C-NHE
4.5V to 5.5V 1Mbit Multi-Purpose Flash32 PLCC TUBE | Microchip Technology Inc. SST39SF010A-70-4C-NHE
Availability: In Stock
Package Type: PLCC-32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SST39SF010A-70-4C-NHE by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SST39SF010A-70-4C-NHE
| Part Name | SST39SF010A-70-4C-NHE |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 14.05 x 11.51 x 2.84 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Series | SST39 |
| Organisation | 128K x 8 bit |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Number Of Words | 128K |
| Height | 2.84 (mm) |
| Width | 11.51 (mm) |
| Length | 14.05 (mm) |
| Memory Size | 1 (MB) |
| Package Type | PLCC |
| Number Of Bits Per Word | 8 (bit) |
| Minimum Operating Temperature | 0 °C |
| Block Organisation | Symmetrical |
| Maximum Random Access Time | 70 (ns) |
| Mounting Type | Surface Mount |
| Cell Type | Split Gate |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 32 |
| Interface Type | Parallel |
Inventory for the SST39SF010A-70-4C-NHE by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,554
|
|
Visit Site | |
|
★ Featured
|
9,610
|
160 x $2.18
|
Visit Site | |
| Arrow Europe |
47
|
|
Visit Site | |
| Onlinecomponents |
280
|
|
Visit Site | |
| RS Americas |
360
|
|
Visit Site | |
| Verical |
47
|
|
Visit Site |
No issues have been reported for the SST39SF010A-70-4C-NHE
