Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

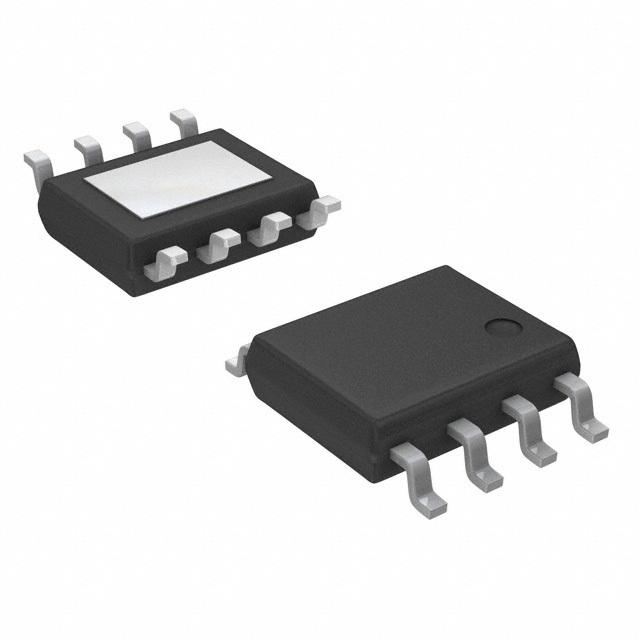

ST1S14PHR
Buck Switching Regulator IC Positive Adjustable 1.22V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Availability: Out of Stock
Package Type: HSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ST1S14PHR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

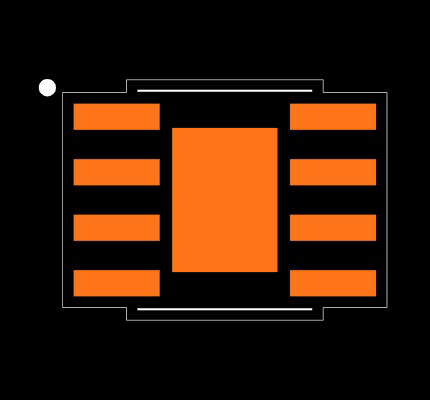

Footprint
No web preview
This Footprint is Available for

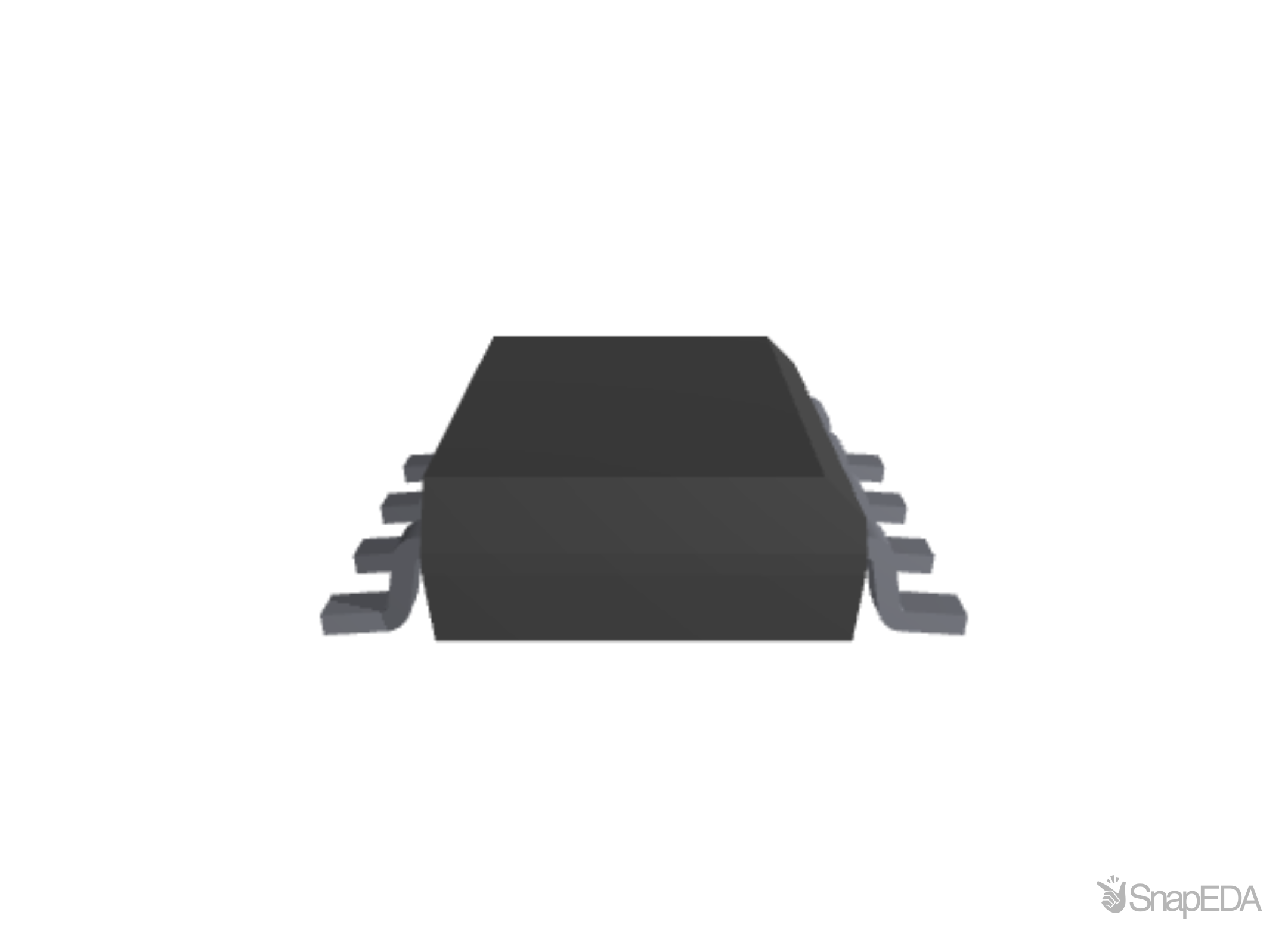

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ST1S14PHR
| Part Name | ST1S14PHR |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Converter Type | Step Down |
| Dimensions | 5 x 4 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +150 °C |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1000 kHz |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Package Type | HSOP |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 1.22 V |
| Height | 1.6 (mm) |
| Maximum Output Current (A) | 3 (A) |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 48 V |
| Minimum Input Voltage (V) | 5.5 V |
No issues have been reported for the ST1S14PHR
If you experienced any issues with the symbol or footprint, please report it.
