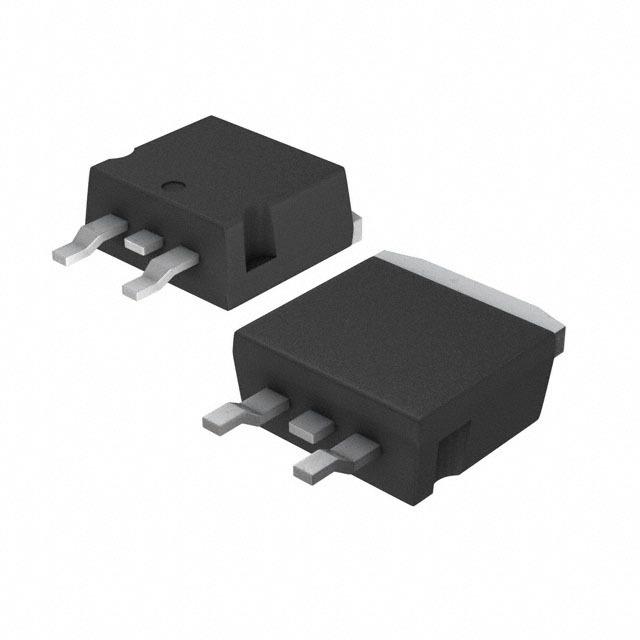

STB16NF06LT4
N-Channel 60 V 16A (Tc) 45W (Tc) Surface Mount D2PAK
Availability: In Stock
Package Type: TO-263-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the STB16NF06LT4 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the STB16NF06LT4
| Part Name | STB16NF06LT4 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 3 |
| Maximum Drain Source Voltage (V) | 60 V |
| Typical Gate Charge @ Vgs | 7.3 nC @ 4.5 V |
| Width | 10.4 (mm) |
| Mounting Type | Surface Mount |
| Maximum Continuous Drain Current (A) | 16 A |
| Maximum Gate Source Voltage (V) | -16 V, +16 V |
| Series | STripFET |
| Channel Type | N |
| Maximum Power Dissipation | 45 W |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Length | 10.75 (mm) |
| Package Type | D2PAK (TO-263) |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 1 (V) |
| Height | 4.6 (mm) |
| Maximum Operating Temperature | +175 °C |
| Maximum Drain Source Resistance | 100 mΩ |
| Transistor Configuration | Single |
Inventory for the STB16NF06LT4 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,053
|
|
Visit Site | |
|
★ Featured
|
1,311
|
|
Visit Site | |
|
★ Featured
|
1,113
|
715 x $0.42
|
Visit Site | |
| Arrow Electronics |
16,000
|
2,000 x $0.39
|
Visit Site | |
| Verical |
5,000
|
|
Visit Site |
No issues have been reported for the STB16NF06LT4
If you experienced any issues with the symbol or footprint, please report it.
