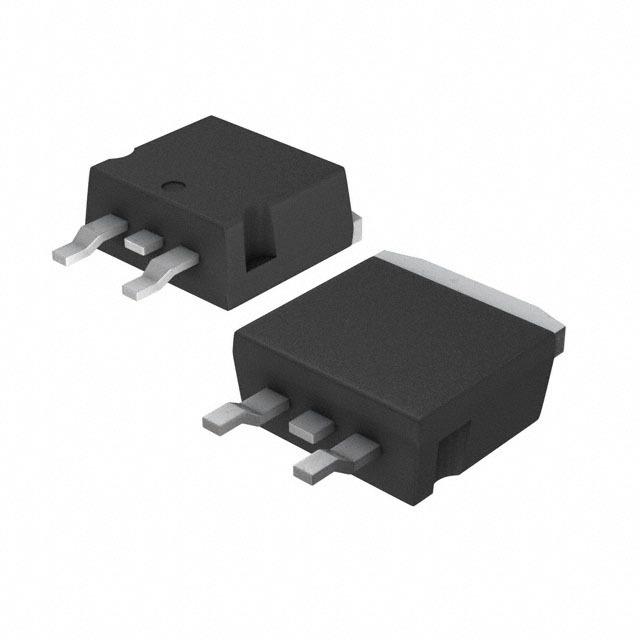

STB4NK60ZT4
N-Channel 600 V 4A (Tc) 70W (Tc) Surface Mount D2PAK
Availability: In Stock
Package Type: TO-263-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the STB4NK60ZT4 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

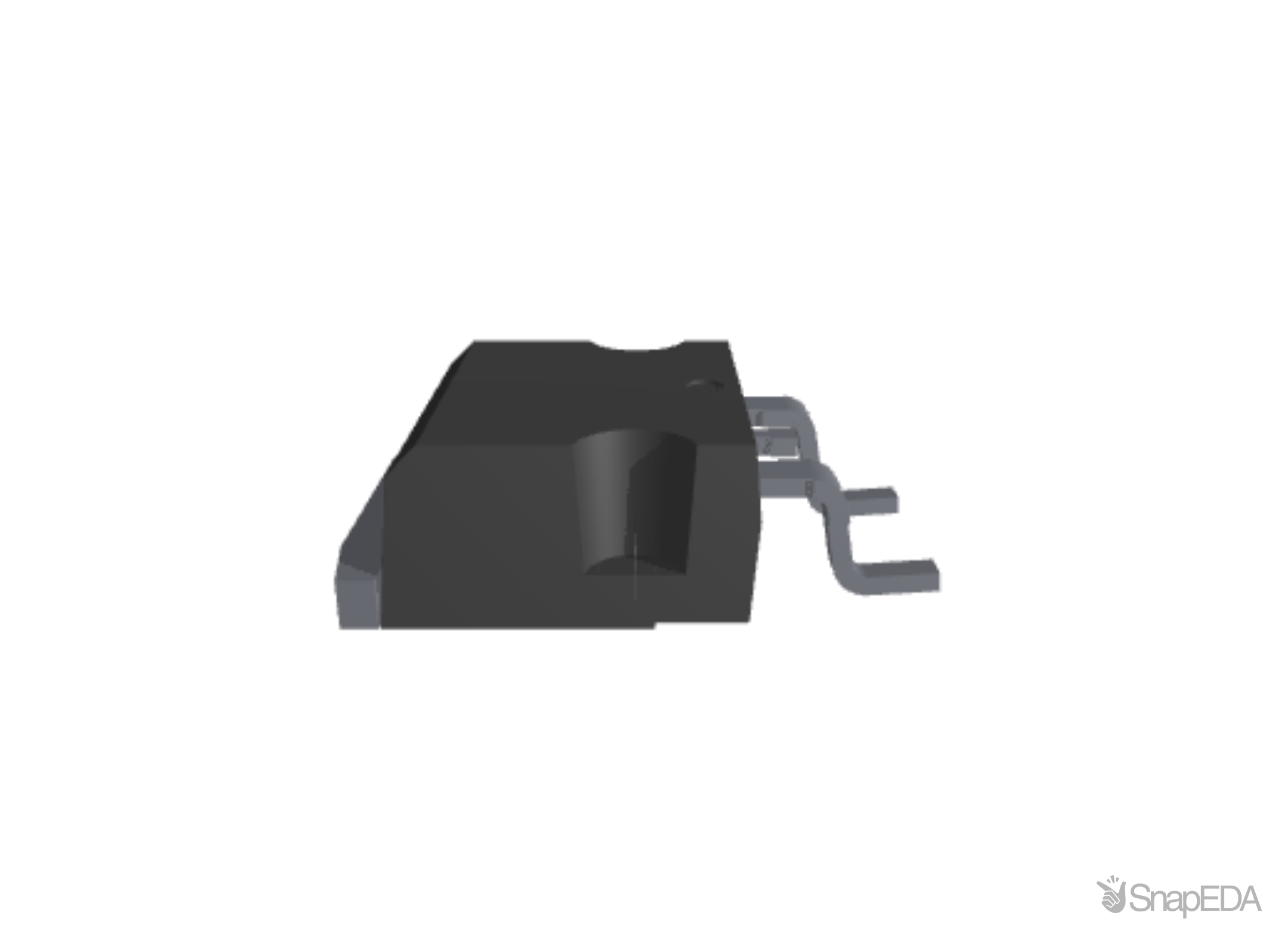

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the STB4NK60ZT4
| Part Name | STB4NK60ZT4 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 4 A |
| Transistor Material | Si |
| Width | 9.35 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 600 V |
| Maximum Gate Threshold Voltage (V) | 4.5 (V) |
| Package Type | D2PAK (TO-263) |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 3 (V) |
| Maximum Operating Temperature | +150 °C |
| Channel Type | N |
| Length | 10.4 (mm) |
| Typical Gate Charge Vgs | 18.8 nC @ 10 V |
| Pin Count | 3 |
| Mounting Type | Surface Mount |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 70 W |
| Series | MDmesh, SuperMESH |
| Maximum Gate Source Voltage (V) | -30 V, +30 V |
| Height | 4.6 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 2 Ω |
Inventory for the STB4NK60ZT4 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,257
|
|
Visit Site | |
|
★ Featured
|
11,200
|
2,055 x $0.17
|
Visit Site | |
| Arrow Electronics |
6,000
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
719
|
|
Visit Site | |
| Newark |
65
|
|
Visit Site | |
| Verical |
6,000
|
|
Visit Site | |
| element14 Singapore |
719
|
|
Visit Site |
No issues have been reported for the STB4NK60ZT4
If you experienced any issues with the symbol or footprint, please report it.
