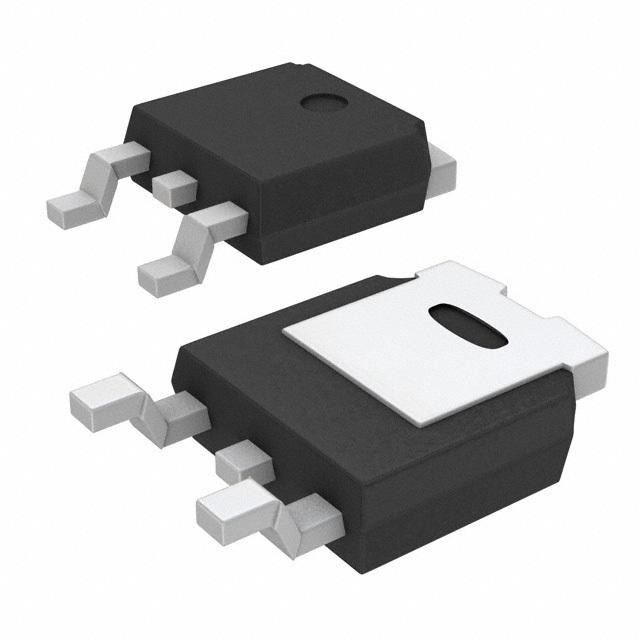

STD45N10F7
N-channel 100 V, 0.013 Ohm typ., 45 A STripFET F7 Power MOSFET in DPAK package
Availability: In Stock
Package Type: DPAK
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the STD45N10F7 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

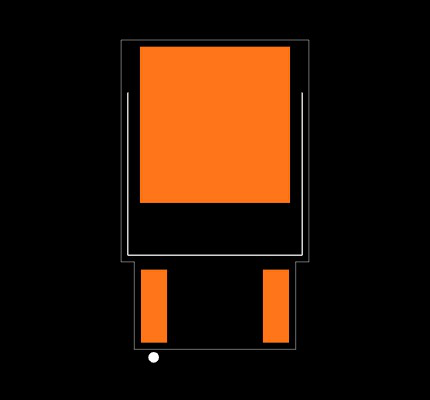

Footprint
No web preview
This Footprint is Available for

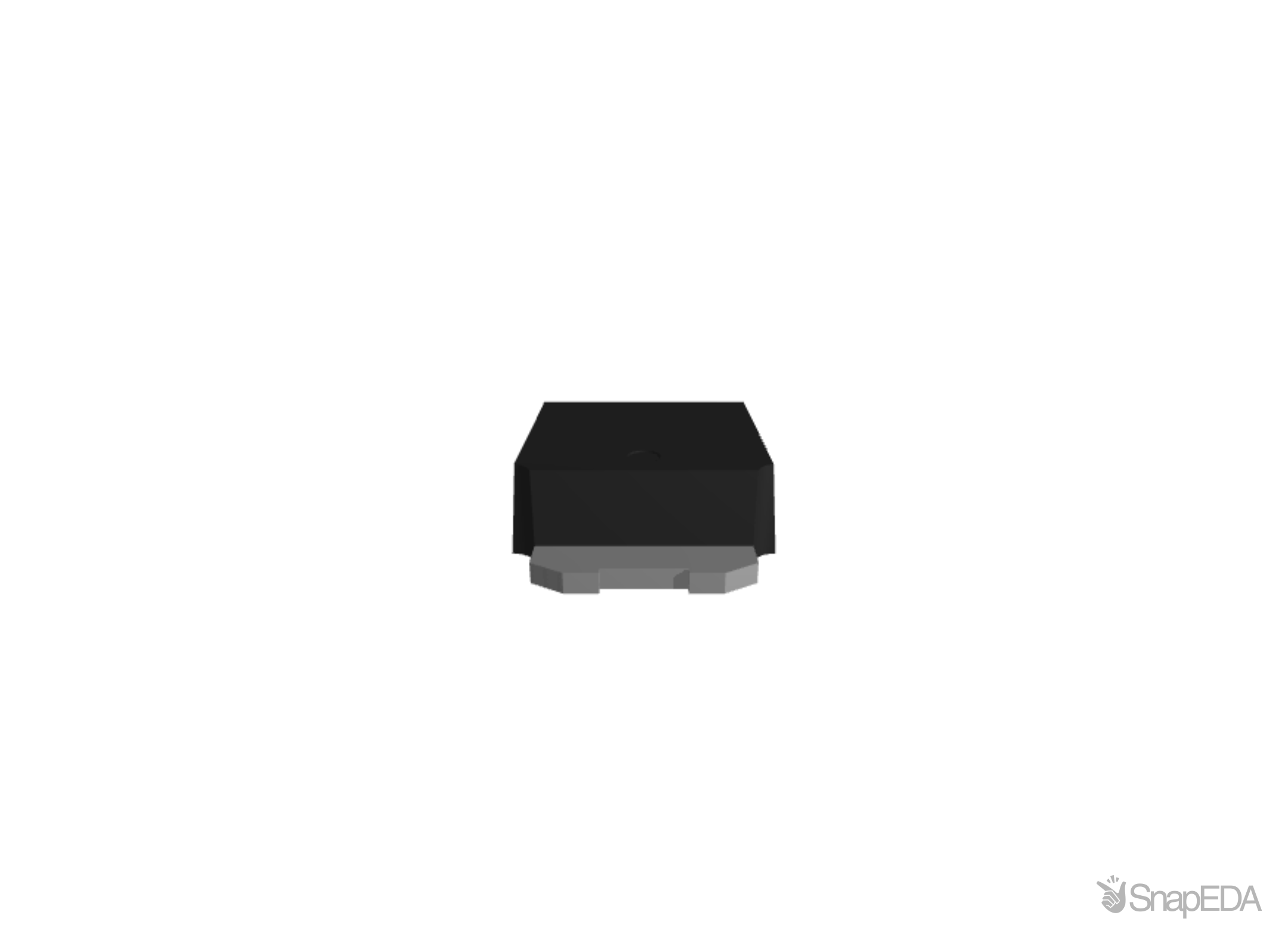

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the STD45N10F7
| Part Name | STD45N10F7 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Continuous Drain Current (A) | 45 A |
| Transistor Material | Si |
| Width | 6.2 (mm) |
| Transistor Configuration | Single |
| Maximum Drain Source Voltage (V) | 100 V |
| Maximum Gate Threshold Voltage (V) | 4.5 (V) |
| Package Type | DPAK (TO-252) |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 2.5 (V) |
| Maximum Operating Temperature | +175 °C |
| Channel Type | N |
| Length | 6.6 (mm) |
| Typical Gate Charge Vgs | 25 nC @ 10 V |
| Pin Count | 3 |
| Mounting Type | Surface Mount |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 60 W |
| Series | STripFET H7 |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Height | 2.4 (mm) |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 18 mΩ |
Inventory for the STD45N10F7 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,060
|
|
Visit Site | |
|
★ Featured
|
3,690
|
|
Visit Site | |
|
★ Featured
|
30,000
|
420 x $0.83
|
Visit Site | |
| Arrow Europe |
2,500
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
12,326
|
|
Visit Site | |
| Newark |
2,300
|
|
Visit Site | |
| TME |
1,787
|
|
Visit Site | |
| Verical |
2,500
|
|
Visit Site | |
| element14 Singapore |
12,326
|
|
Visit Site |
No issues have been reported for the STD45N10F7
