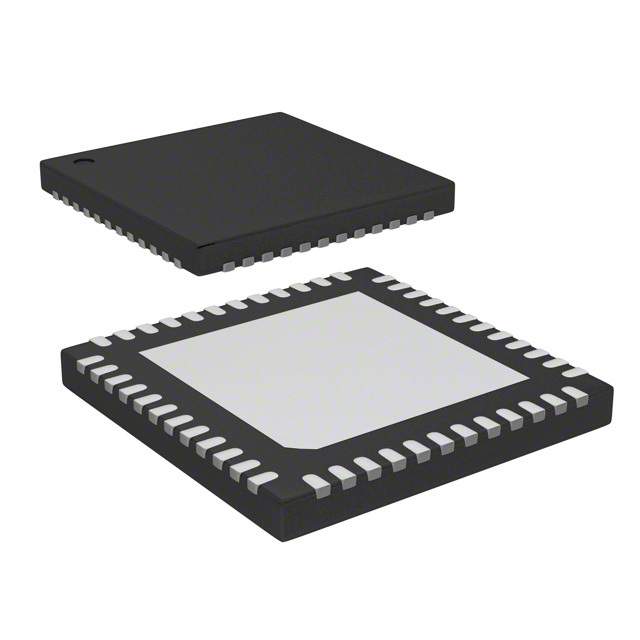

STM32L452CCU6
ARM® Cortex®-M4 STM32L4 Microcontroller IC 32-Bit Single-Core 80MHz 256KB (256K x 8) FLASH 48-UFQFPN (7x7)
Availability: In Stock
Package Type: UFQFPN-48
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the STM32L452CCU6 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

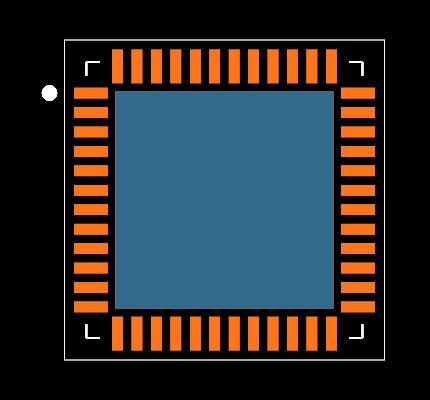

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the STM32L452CCU6
| Part Name | STM32L452CCU6 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 7.1 x 7.1 x 0.6 (mm) |
| Usb Channels | 1 |
| Width | 7.1 (mm) |
| Number Of Can Channels | 1 |
| Program Memory Size | 512 kB |
| Number Of Spi Channels | 3 |
| Data Bus Width | 32 (bit) |
| Instruction Set Architecture | DSP, RISC |
| Program Memory Type | Flash |
| Package Type | UFQFPN |
| Maximum Frequency | 80 (MHz) |
| Number Of Pwm Units | 1 x 16 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 10 x 12 bit |
| Family Name | STM32L4 |
| Device Core | ARM Cortex M4 |
| Length | 7.1 (mm) |
| Ram Size | 160 kB |
| Pin Count | 48 |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 4 |
| Height | 0.6 (mm) |
| Typical Operating Supply Voltage (V) | 3.6 (Maximum) V |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 3 |
| Number Of Uart Channels | 2 |
