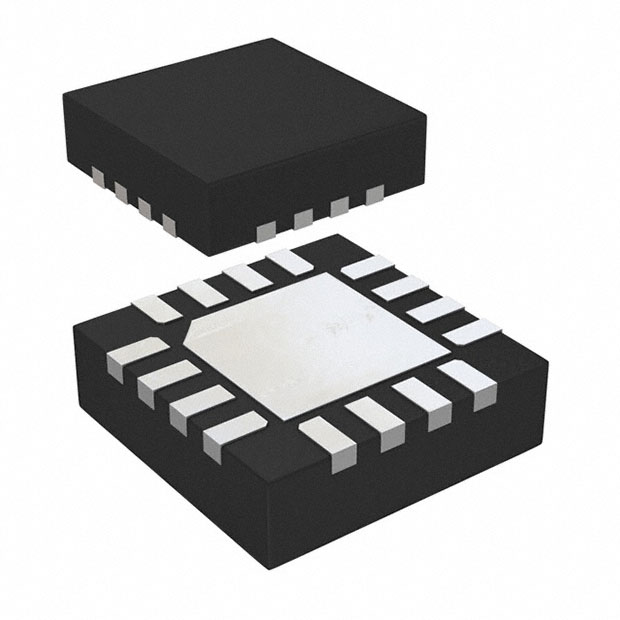

STSPIN220
Bipolar Motor Driver Power MOSFET Step/Direction 16-VFQFPN (3x3)
Availability: In Stock
Package Type: VFQFN-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the STSPIN220 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the STSPIN220
| Part Name | STSPIN220 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Product Length | 3.15 (mm) |
| Configuration | H Bridge |
| Dimensions | 3.15 x 3.15 x 0.98 (mm) |
| Maximum Operating Supply Voltage (V) | 10 V |
| Series | STSPIN |
| Minimum Operating Supply Voltage (V) | 1.8 V |
| Maximum Supply Voltage (V) | 10 V |
| Product Width | 3.15 (mm) |
| Width | 3.15 (mm) |
| Length | 3.15 (mm) |
| Height | 0.98 (mm) |
| Package Type | QFN |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | 2 Phase |
| Mounting Type | Surface Mount |
| Motor Type | Stepper |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 16 |
| Product Height | 0.98 (mm) |
Inventory for the STSPIN220 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
7,236
|
|
Visit Site | |
|
★ Featured
|
9,604
|
|
Visit Site | |
|
★ Featured
|
145,940
|
425 x $0.71
|
Visit Site | |
| Arrow Electronics |
4,000
|
4,000 x $0.82
|
Visit Site | |
| Verical |
4,000
|
4,000 x $0.82
|
Visit Site |
No issues have been reported for the STSPIN220
If you experienced any issues with the symbol or footprint, please report it.
