STTH1602CT
Diode Array 1 Pair Common Cathode Standard 200 V 10A Through Hole TO-220-3
Availability: In Stock
Package Type: TO-220-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the STTH1602CT by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

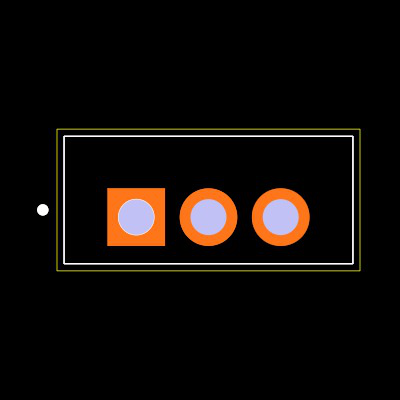

Footprint
No web preview
This Footprint is Available for

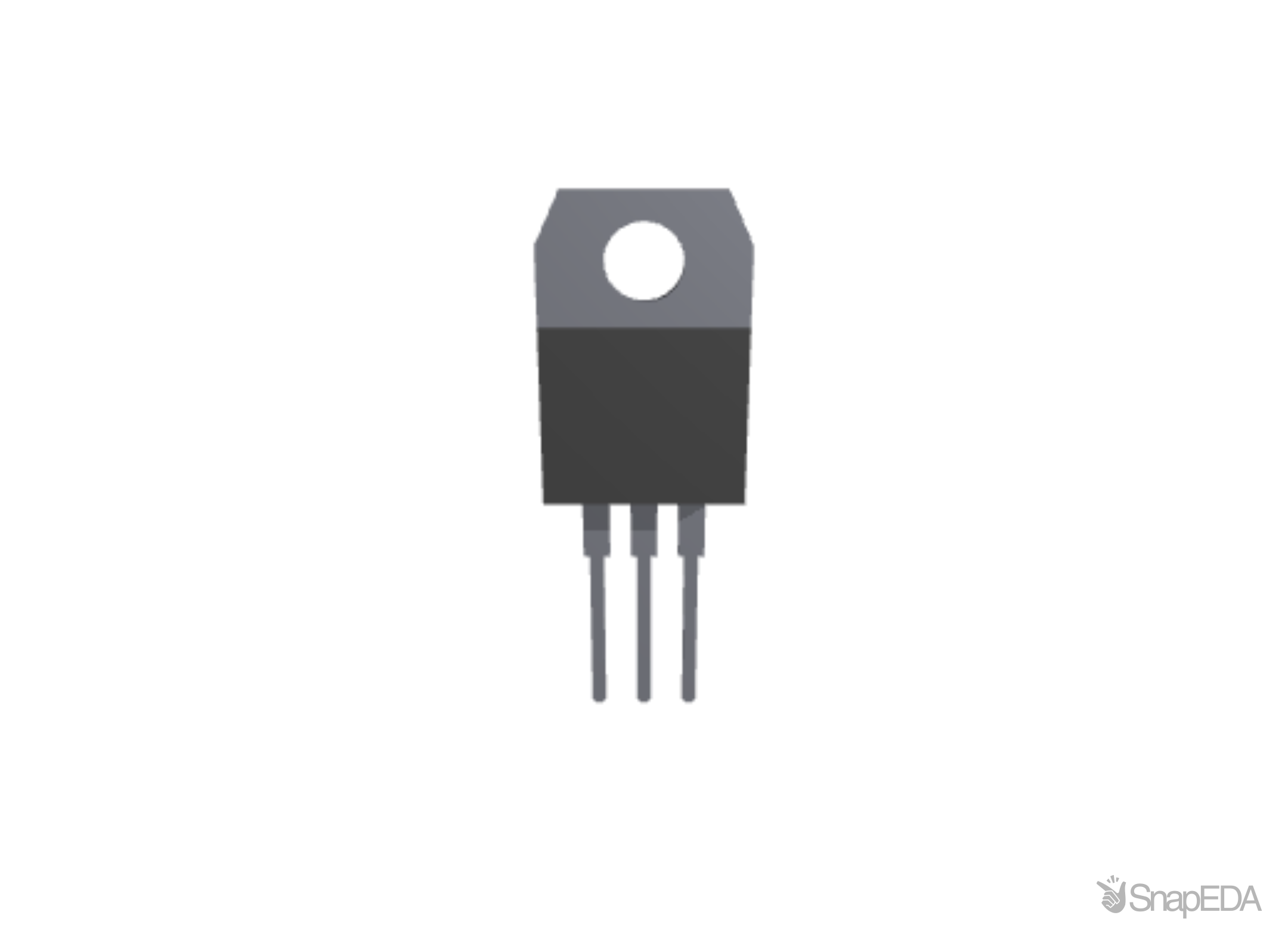

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the STTH1602CT
| Part Name | STTH1602CT |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Through Hole |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 26 (ns) |
| Maximum Forward Voltage Drop (V) | 1.25 (V) |
| Maximum Continuous Forward Current (A) | 20 (A) |
| Rectifier Type | Switching |
| Package Type | TO-220AB |
| Peak Reverse Repetitive Voltage (V) | 200 (V) |
| Diode Type | Rectifier |
| Diode Configuration | Common Cathode |
| Pin Count | 3 |
| Peak Non Repetitive Forward Surge Current (A) | 80 (A) |
| Number Of Elements Per Chip | 2 |
