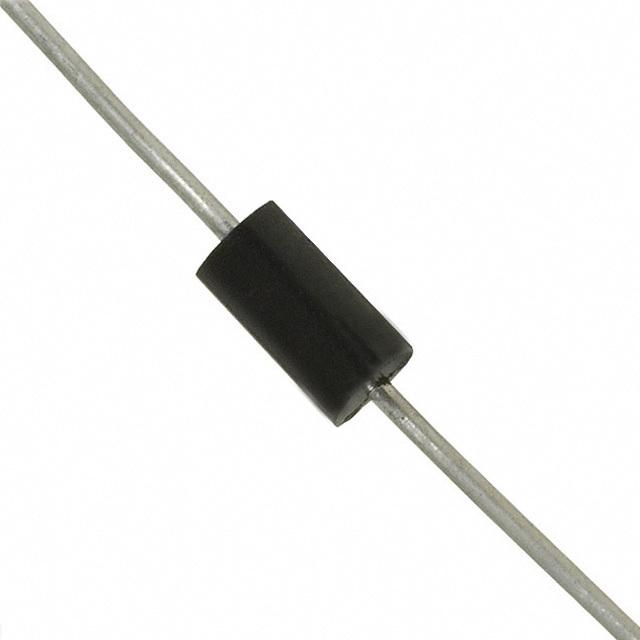

STTH1R04QRL
Diode Standard 400 V 1A Through Hole DO-15
Availability: In Stock
Package Type: DO-204
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the STTH1R04QRL by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the STTH1R04QRL
| Part Name | STTH1R04QRL |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diode Configuration | Single |
| Dimensions | 6.75 x 3.53 x 3.53 (mm) |
| Mounting Type | Through Hole |
| Diode Technology | Silicon Junction |
| Maximum Reverse Voltage (V) | 400 (V) |
| Maximum Forward Voltage Drop (V) | 1.5 (V) |
| Height | 3.53 (mm) |
| Width | 3.53 (mm) |
| Length | 6.75 (mm) |
| Package Type | DO-15 |
| Number Of Elements Per Chip | 1 |
| Maximum Forward Current (A) | 1 (A) |
| Maximum Operating Temperature | +175 °C |
| Pin Count | 2 |
Inventory for the STTH1R04QRL by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,589
|
|
Visit Site | |
|
★ Featured
|
22,320
|
5,000 x $0.06
|
Visit Site | |
| Arrow Electronics |
24,000
|
6,000 x $0.09
|
Visit Site | |
| Verical |
24,000
|
6,000 x $0.09
|
Visit Site |
No issues have been reported for the STTH1R04QRL
