SZR-LY2-N1-DC24V

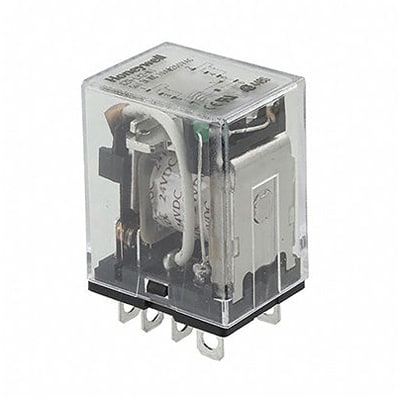

DPDT Socket Mount Non-Latching Relay Plug In, Solder, 10 A, 24VDC, SZR-LY Series | Honeywell SZR-LY2-N1-DC24V
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SZR-LY2-N1-DC24V by Honeywell and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SZR-LY2-N1-DC24V
| Part Name | SZR-LY2-N1-DC24V |
| Manufacturer | Honeywell Sensing |
| Category | Relays |
| RoHS | True |
| Life Cycle Status | Verify Status with Factory |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Switching Voltage Dc (V) | 125 (V dc) |
| Application | General Purpose |
| Maximum Switching Power Dc | 240 W |
| Terminal Type | Plug In |
| Coil Resistance | 650 (Ω) |
| Life | 100000000 (Mechanical) Operations, 200000 (Electrical) Operations |
| Coil Power | 900 (mW) |
| Isolation Coil To Contact | 1.8 (kV ac) |
| Maximum Operating Temperature | +70 (°C) |
| Switching Current (A) | 10 (A) |
| Coil Voltage (V) | 24 (V dc) |
| Latching | No |
| Contact Configuration | DPDT |
| Length | 21.5 (mm) |
| Maximum Switching Voltage Ac (V) | 250 (V) |
| Maximum Switching Power Ac | 1.1 kVA |
| Number Of Poles | 2 |
| Mounting Type | Plug In |
| Depth | 36 (mm) |
| Height | 28 (mm) |
| Minimum Operating Temperature | -25 (°C) |
| Contact Material | Silver Alloy |
No issues have been reported for the SZR-LY2-N1-DC24V
If you experienced any issues with this part, please report it.
