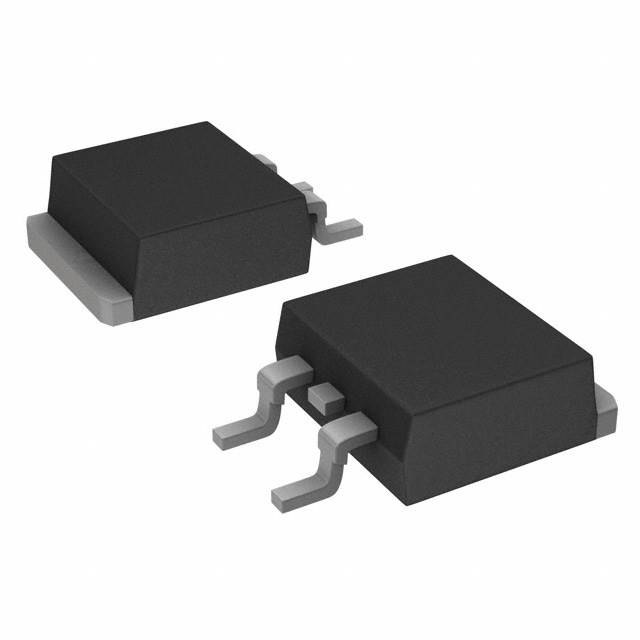

T1235-800G-TR
TRIAC Alternistor - Snubberless 800 V 12 A Surface Mount D2PAK
Availability: In Stock
Package Type: D2PAK-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T1235-800G-TR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

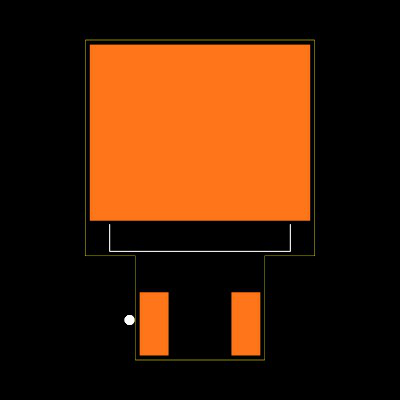

Footprint
No web preview
This Footprint is Available for

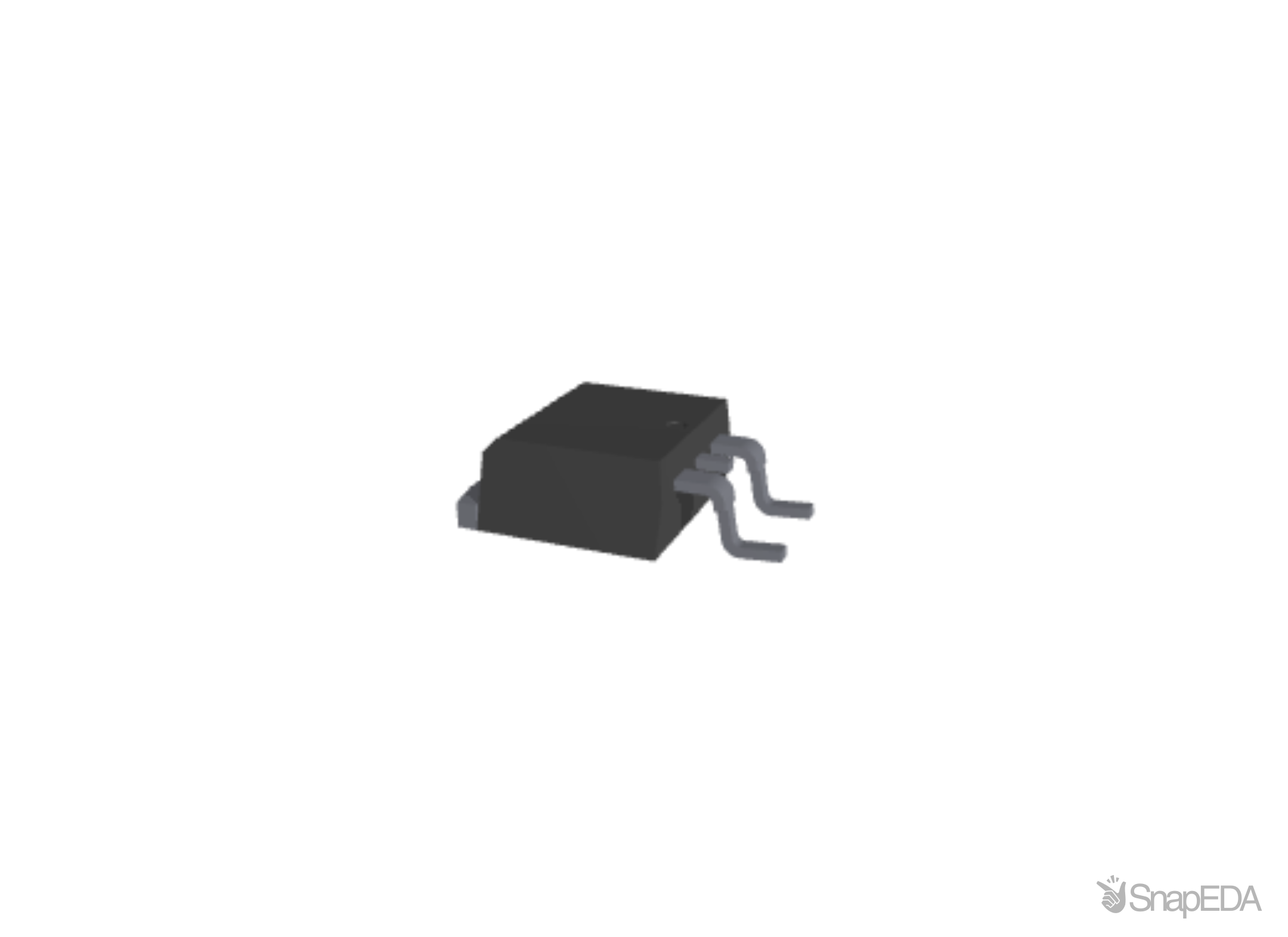

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T1235-800G-TR
| Part Name | T1235-800G-TR |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Forward Blocking Voltage (V) | 800 (V) |
| Repetitive Peak Reverse Voltage (V) | 800 (V) |
| Peak On-State Voltage (V) | 1.55 (V) |
| Dimensions | 10.28 x 9.35 x 4.6 (mm) |
| Mounting Type | Surface Mount |
| Surge Current Rating (A) | 126 (A) |
| Maximum Holding Current (A) | 35 (mA) |
| Height | 4.6 (mm) |
| Width | 9.35 (mm) |
| Length | 10.28 (mm) |
| Repetitive Peak Off-State Current (A) | 0.005 (mA) |
| Package Type | D2PAK (TO-263) |
| Minimum Operating Temperature | -40 °C |
| Rated Average On-State Current (A) | 12 (A) |
| Maximum Gate Trigger Current (A) | 35 (mA) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage (V) | 1.3 (V) |
Inventory for the T1235-800G-TR by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,567
|
|
Visit Site | |
|
★ Featured
|
2,940
|
605 x $0.50
|
Visit Site | |
| Arrow Europe |
17,000
|
|
Visit Site | |
| Verical |
85
|
|
Visit Site |
No issues have been reported for the T1235-800G-TR
