T4140512031-000
SnapVerified
M12, Rear Mounting, Male, d Code, 3p
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T4140512031-000 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

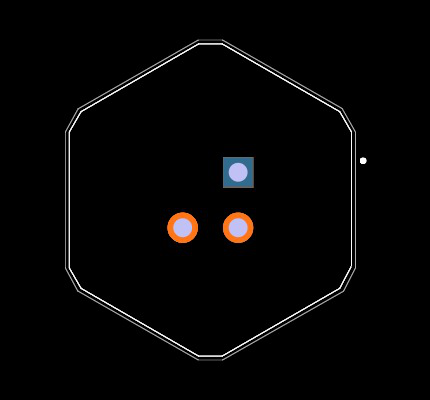

Footprint
No web preview
This Footprint is Available for

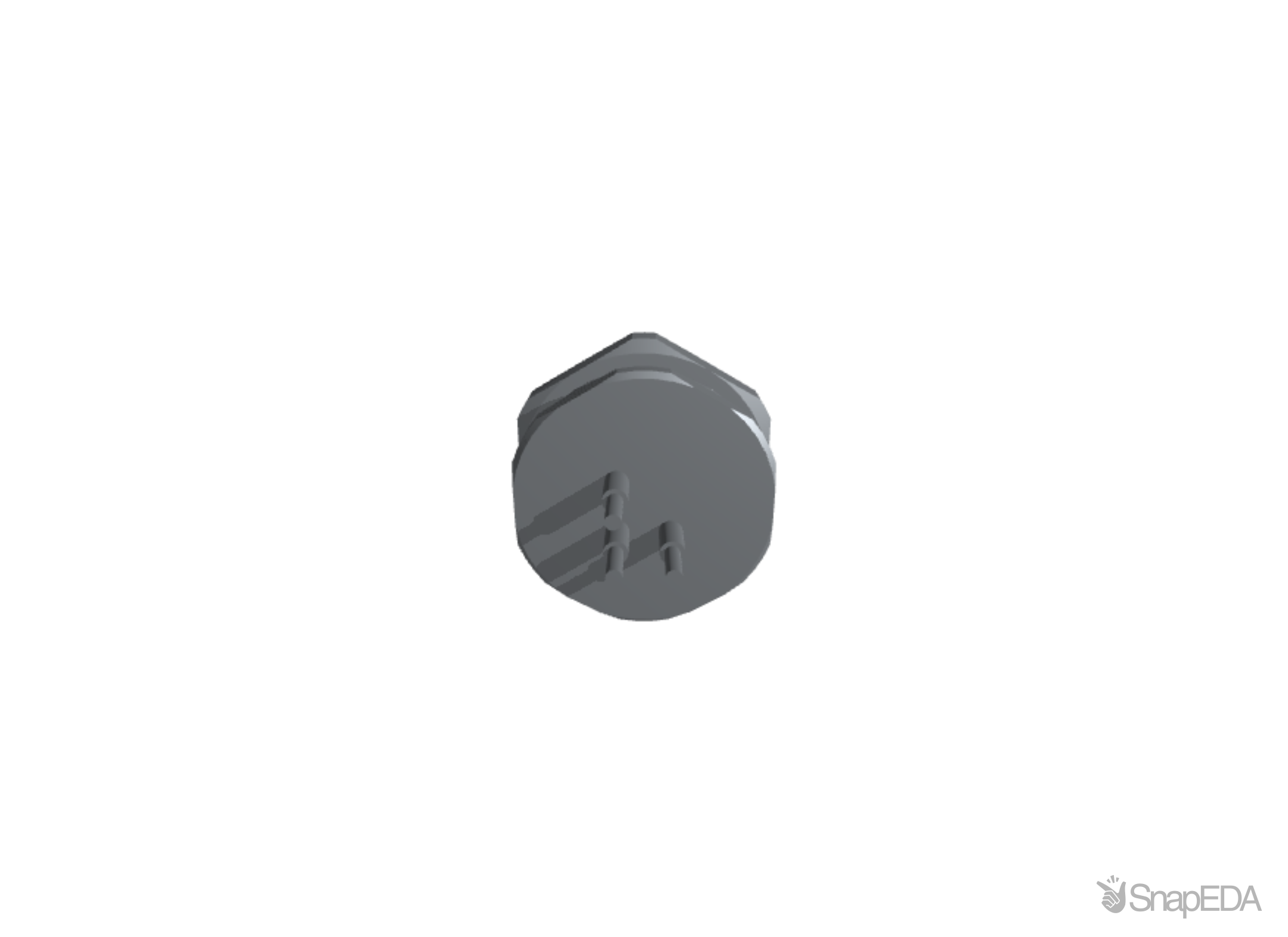

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T4140512031-000
| Part Name | T4140512031-000 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Nickel |
| Keying | D |
| Shell Material | Copper Alloy |
| Circuit Application | Signal |
| TE Internal Number | T4140512031-000 |
| Number of Power Positions | 0 |
| Environmental Protection | IP67 |
| Operating Voltage (V) | 250 |
| Shell Size | 18 |
| Connector Style | Plug |
| Connector & Contact Terminates To | Printed Circuit Board |
| Environmental Protection Type | Elastomer Sealed |
| Flange | Without |
| Number of Positions | 3 |
| Connector System | Wire-to-Panel |
| Number of Signal Positions | 3 |
| Product Type | Connector |
| IP Water Sealing Level | IP67 |
| Operating Temperature Range | -40 to 185 |
| Shielded | No |
| Peripheral Seal Material | Silicone |
| Keying & Polarized Position Locations | D |
| Packaging Quantity | 1 |
| O-Ring Material | Silicone |
| RoHS | True |
| Assembly Type | Electrical Connector |
| Polarization Code | D |
| Sealable | Yes |
| Reverse Gender | Reverse |
| Shell Type | Metal |
| Accessory Color | Black |
| Factory Installed Backshell | No |
| Field Serviceable | No |
| Contact Current Rating (Max) (A) | 4 |
| Contact Type | Male |
| Preloaded | Yes |
| Insulation Material | Polyamide 66 GF25 |
