T4141012121-000
SnapVerified
M12 A-coding Solder PCB; 12 poles; Rear Mounting; Female | TE Connectivity T4141012121-000
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T4141012121-000 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

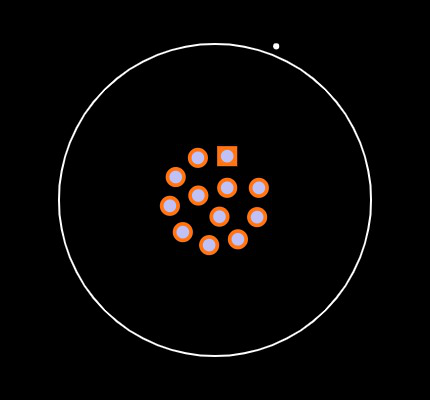

Footprint
No web preview
This Footprint is Available for

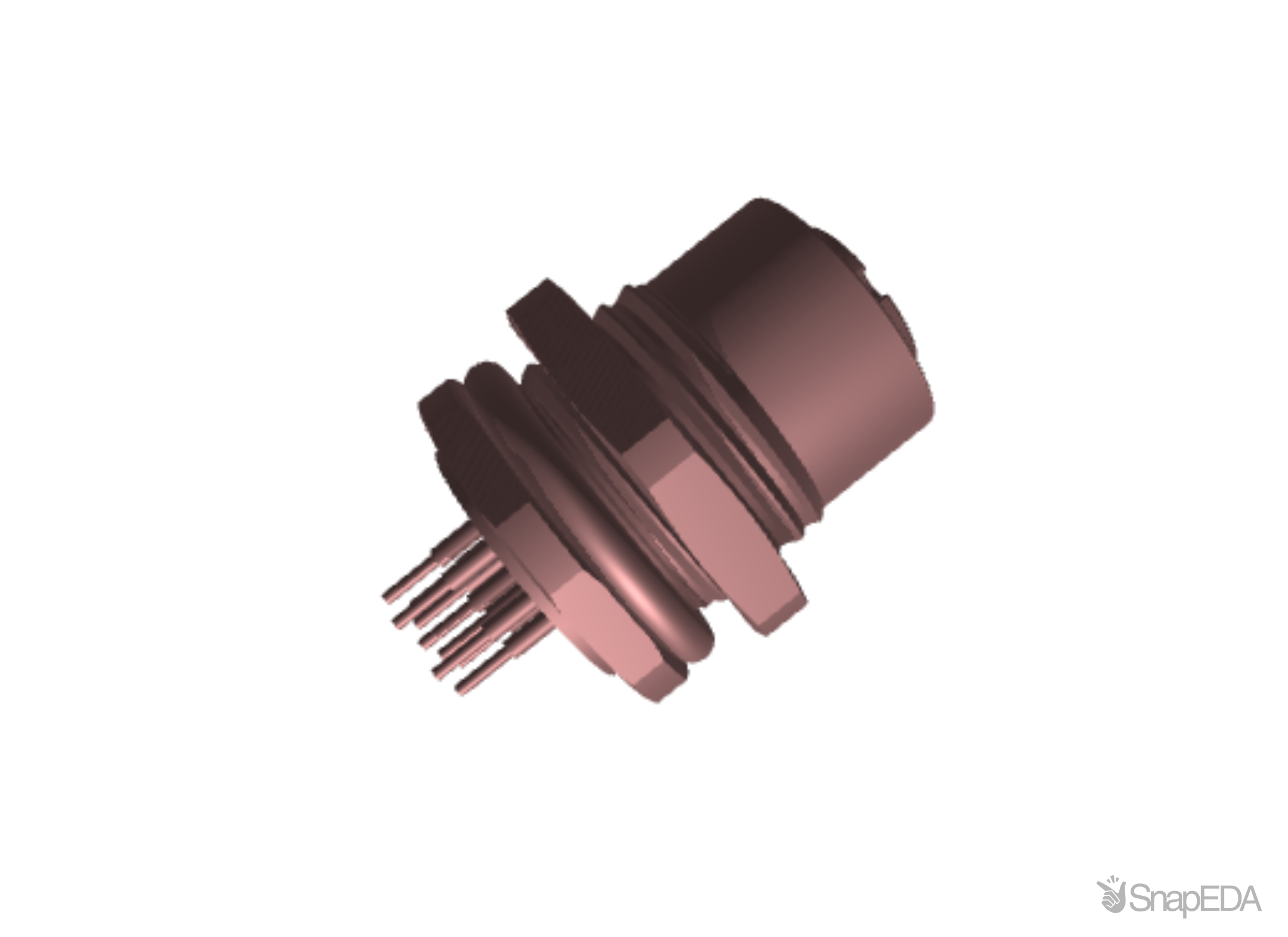

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T4141012121-000
| Part Name | T4141012121-000 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Nickel |
| Category | Connectors |
| Mating Alignment Type | Keyed |
| Keying | A |
| Shell Material | Copper Alloy |
| Circuit Application | Signal |
| Number of Power Positions | 0 |
| Environmental Protection | IP67 |
| Operating Voltage (V) | 30 |
| Shell Size | 18 |
| Connector Style | Receptacle |
| Number of Positions | 12 |
| Environmental Protection Type | Elastomer Sealed |
| TE Internal Number | T4141012121-000 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Panel |
| Number of Signal Positions | 12 |
| Product Type | Connector |
| IP Water Sealing Level | IP67 |
| Operating Temperature Range | -40 to 85 |
| Shielded | No |
| Peripheral Seal Material | Silicone |
| Keying & Polarized Position Locations | A |
| Packaging Quantity | 1 |
| O-Ring Material | Silicone |
| RoHS | True |
| Assembly Type | Electrical Connector |
| Polarization Code | A |
| Sealable | Yes |
| Reverse Gender | Reverse |
| Shell Type | Metal |
| Accessory Color | Black |
| Factory Installed Backshell | No |
| Contact Current Rating (Max) (A) | 1.5 |
| Contact Type | Female |
| Preloaded | Yes |
| Insulation Material | Polyamide 66 GF25 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.5 (A) |
| Mating Type | Keyed |
| Mounting Type | Rear Mount |
| Ip Rating | IP67 |
| Shell Size | 18 |
| Plug Socket | Socket |
| Voltage Rating (V) | 30.0 V |
| Pole Format | 12P |
| Contact Gender | Female |
| Housing Material | Nylon |
| Coding | A |
| Minimum Operating Temperature | -40 (°C) |
| Termination Method | Solder |
| Number Of Contacts | 12 |
| Maximum Operating Temperature | +85 (°C) |
| Connector Size | M12 |
| Contact Material | Copper |
