T435-600B

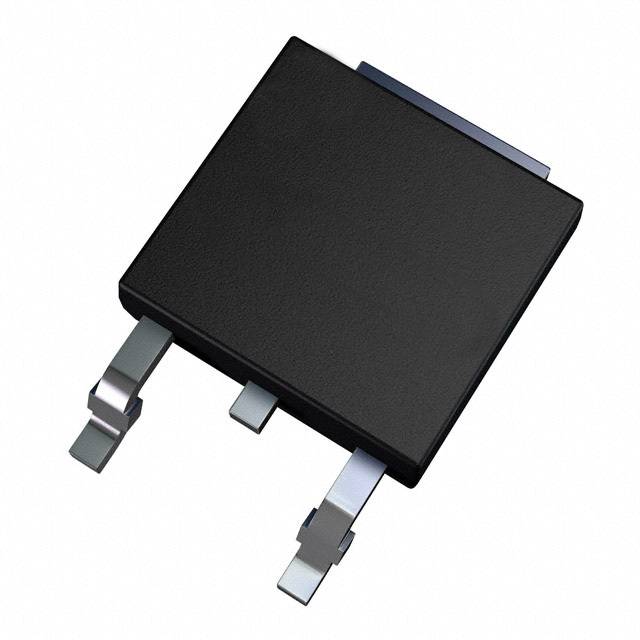

TRIAC Alternistor - Snubberless 600 V 4 A Surface Mount DPAK
Availability: In Stock
Package Type: DPAK
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T435-600B by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T435-600B
| Part Name | T435-600B |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Reverse Voltage (V) | 600 (V) |
| Peak On-State Voltage (V) | 1.56 (V) |
| Dimensions | 6.6 x 6.2 x 2.4 (mm) |
| Mounting Type | Surface Mount |
| Surge Current Rating (A) | 31 (A) |
| Maximum Holding Current (A) | 35 (mA) |
| Height | 2.4 (mm) |
| Width | 6.2 (mm) |
| Length | 6.6 (mm) |
| Repetitive Peak Off-State Current (A) | 1 (mA) |
| Package Type | DPAK (TO-252) |
| Minimum Operating Temperature | -40 °C |
| Rated Average On-State Current (A) | 4 (A) |
| Maximum Gate Trigger Current (A) | 35 (mA) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage (V) | 1.3 (V) |
