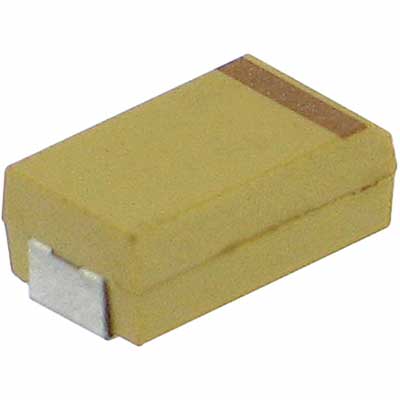

T491D106K035AT
Capacitors Tantalum PCB 10uF SMD Tol 10% 35 VDC Case Size 7343 T491 Series | KEMET T491D106K035AT
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T491D106K035AT by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

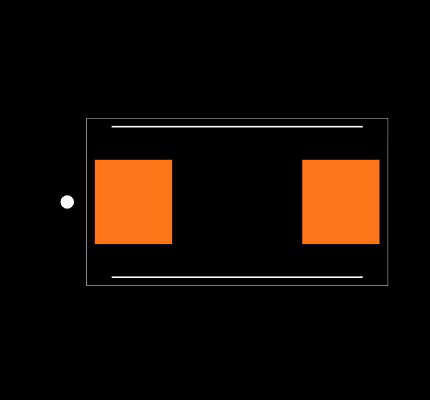

Footprint
No web preview
This Footprint is Available for

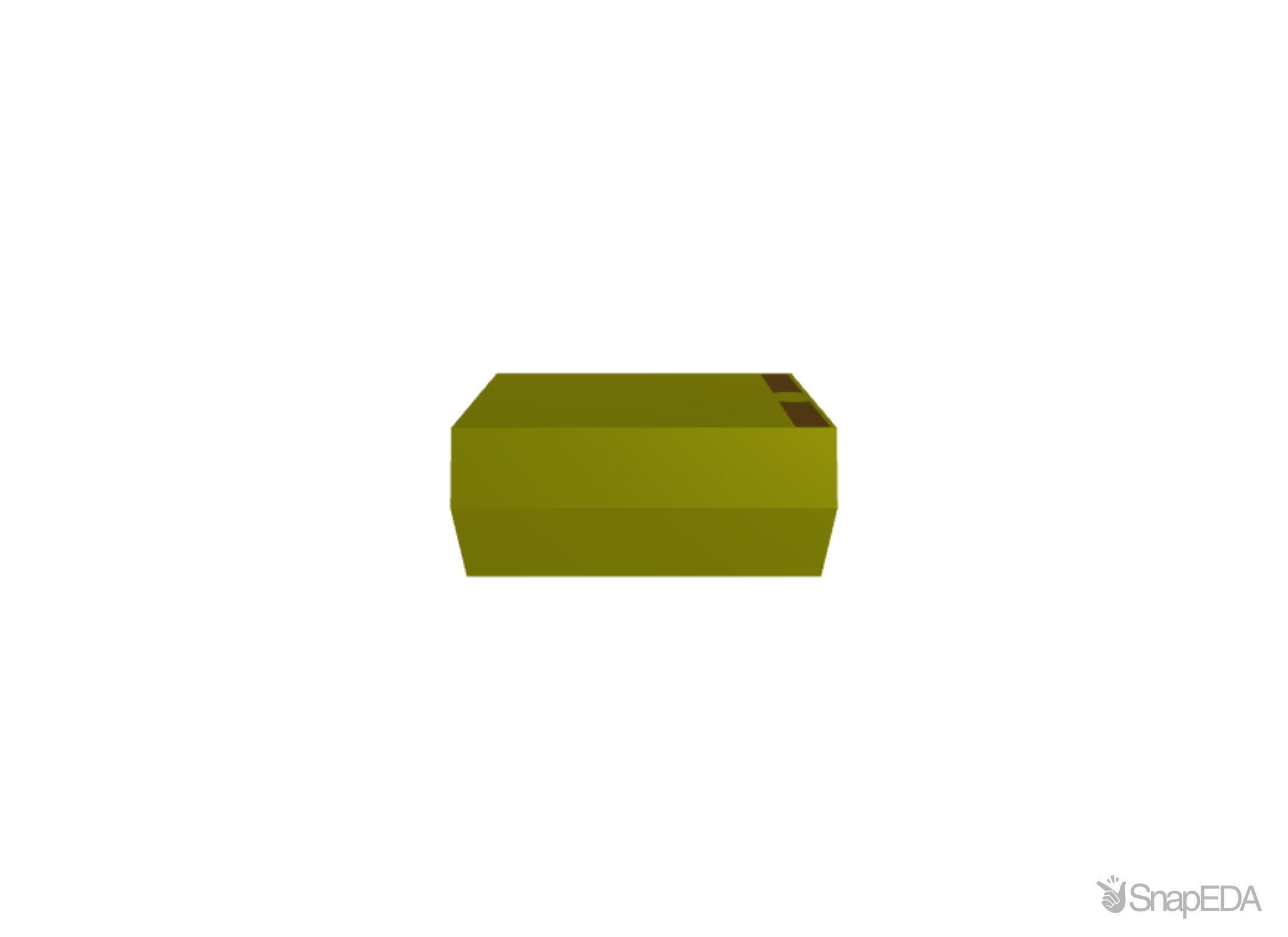

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T491D106K035AT
| Part Name | T491D106K035AT |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tolerance Plus | +10 (%) |
| Dissipation Factor | 6 (%) |
| Dimensions | 7.3 x 4.3 x 2.8 (mm) |
| Tolerance Minus | -10 (%) |
| Package Case | D |
| Series | T491 |
| Length | 7.3 (mm) |
| Equivalent Series Resistance | 1 (Ω) |
| Height | 2.8 (mm) |
| Capacitance | 10 (µF) |
| Depth | 4.3 (mm) |
| Technology | MnO2 |
| Voltage (V) | 35 (V dc) |
| Leakage Current (A) | 500 nA |
| Electrolyte Type | Solid |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Dielectric Material Family | Tantalum |
Inventory for the T491D106K035AT by Yageo from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Buerklin |
938
|
|
Visit Site | |
| Farnell UK |
98,991
|
|
Visit Site | |
| Newark |
10,000
|
|
Visit Site | |
| RS UK |
3,410
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Schukat Electronic |
2,600
|
|
Visit Site | |
| TME |
3,443
|
|
Visit Site | |
| TTI Americas |
51,500
|
|
Visit Site | |
| element14 Singapore |
100,041
|
|
Visit Site |
No issues have been reported for the T491D106K035AT
