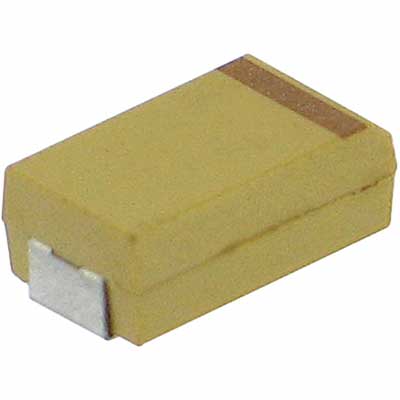

T491D107K016AT
Capacitors Tantalum PCB 100uF SMD Tol 10% 16 VDC Case Size 7343 T491 Series | KEMET T491D107K016AT
Availability: Out of Stock
Package Type: SMD-2
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T491D107K016AT by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

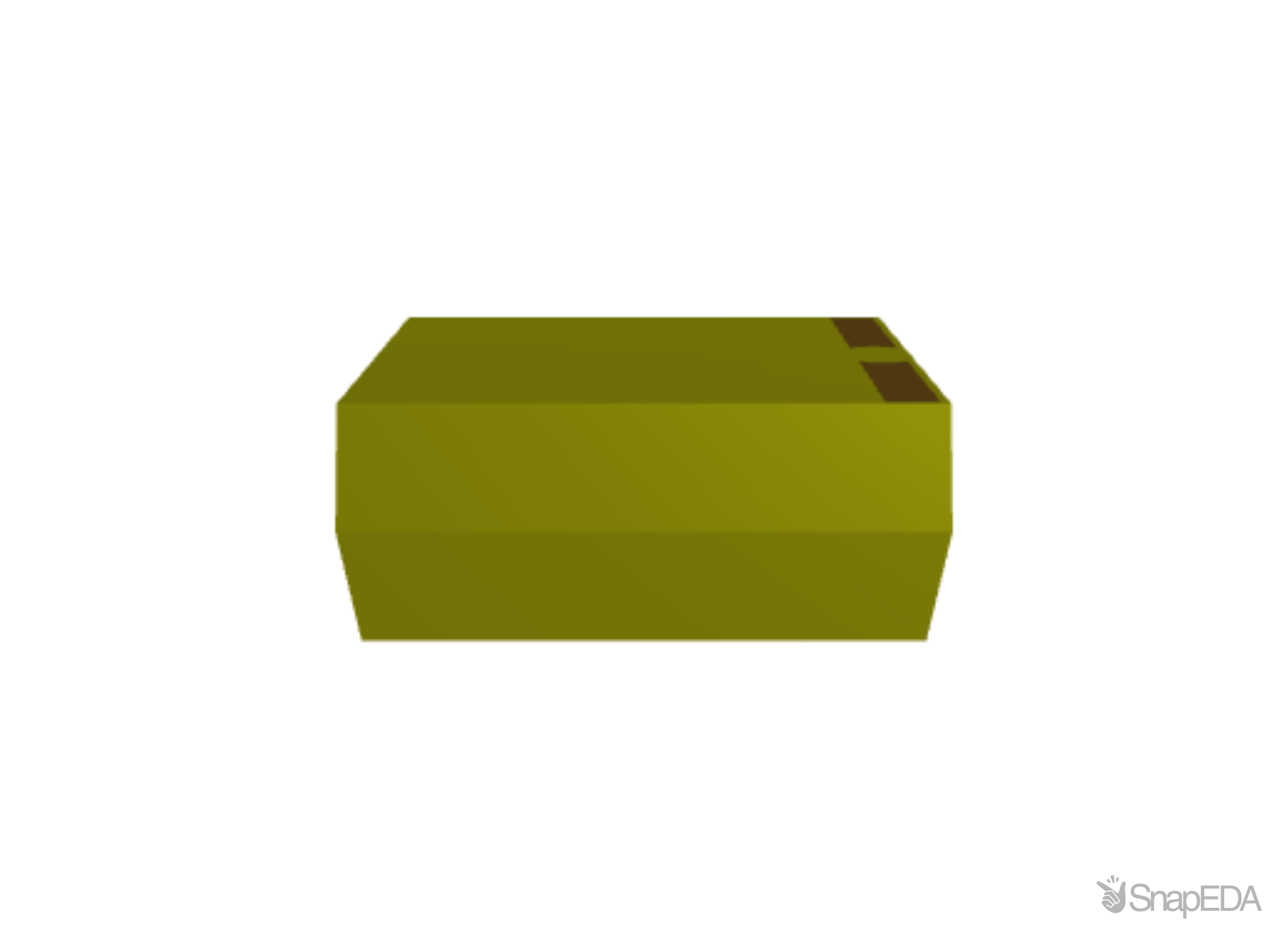

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T491D107K016AT
| Part Name | T491D107K016AT |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Surface Mount |
| Tolerance | ±10 (%) |
| Series | T491 |
| Tolerance (Plus) | +10 (%) |
| Depth | 4.3 (mm) |
| Equivalent Series Resistance | 700 (mΩ) |
| Height | 2.8 (mm) |
| Capacitance | 100 (µF) |
| Length | 7.3 (mm) |
| Dimensions | 7.3 x 4.3 x 2.8 (mm) |
| Voltage (V) | 16 (V dc) |
| Leakage Current (A) | 16 μA |
| Electrolyte Type | Solid |
| Package/Case | D |
| Technology | MnO2 |
| Tolerance (Minus) | -10 (%) |
| Dielectric Material Family | Tantalum |
No issues have been reported for the T491D107K016AT
