T520B107M006ATE015

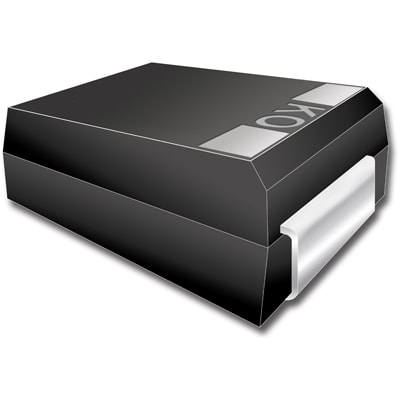

100uF Solid Polymer Tantalum Electrolytic Capacitor, 6.3 VDC +/-20%, T520 Series | KEMET T520B107M006ATE015
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T520B107M006ATE015 by KEMET and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

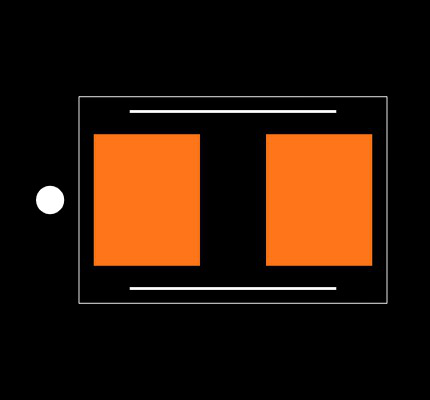

Footprint
No web preview
This Footprint is Available for

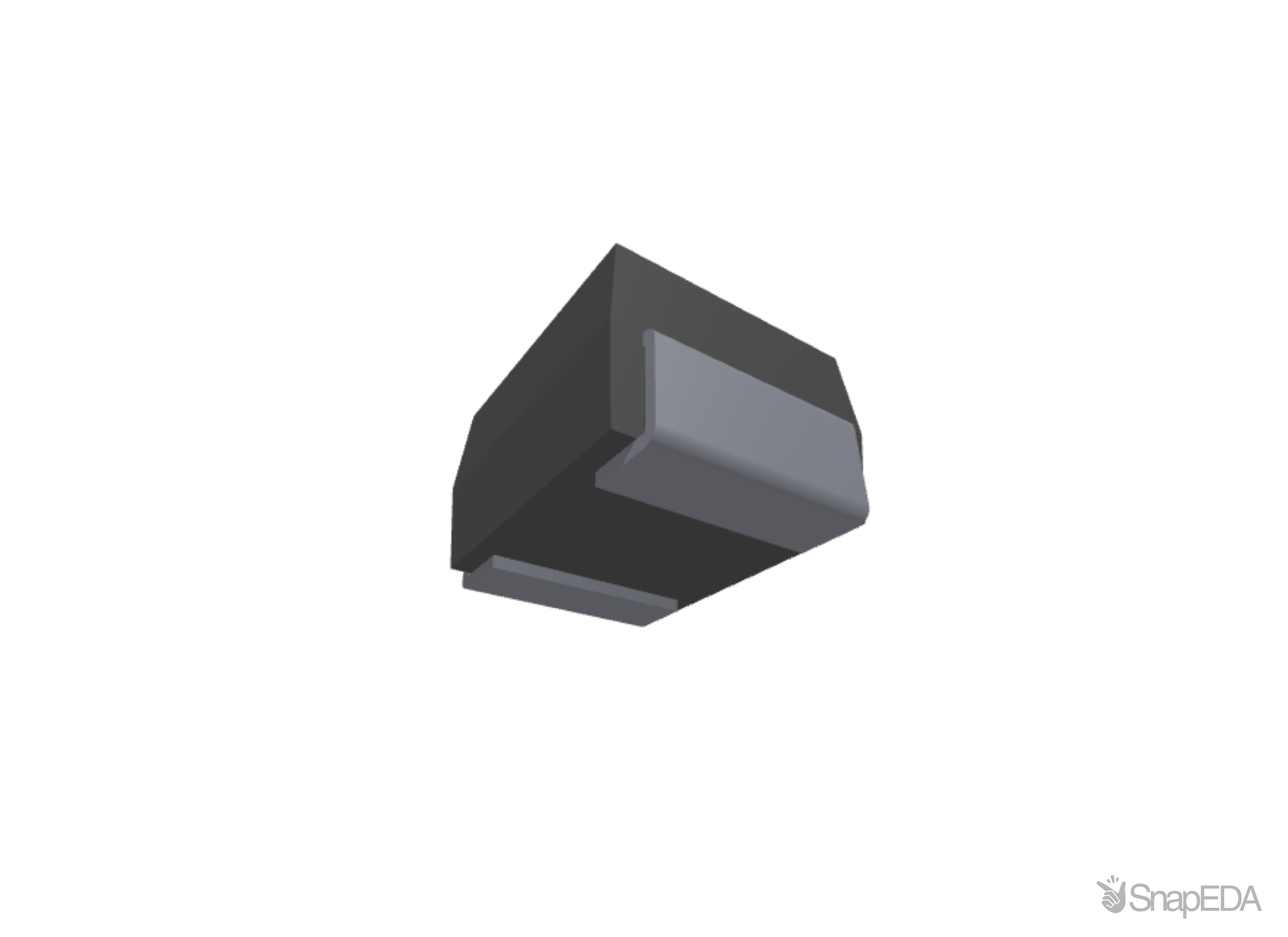

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T520B107M006ATE015
| Part Name | T520B107M006ATE015 |
| Manufacturer | KEMET |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.5 x 2.8 x 1.9 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±20 (%) |
| Package Case | 3528-21 |
| Series | T520 |
| Depth | 2.8 (mm) |
| Dissipation Factor | 8 (%) |
| Height | 1.9 (mm) |
| Capacitance | 100 (µF) |
| Length | 3.5 (mm) |
| Dielectric Material Family | Tantalum |
| Equivalent Series Resistance | 15 (mΩ) |
| Leakage Current (A) | 63 μA |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +105 (°C) |
| Technology | Polymer |
| Minimum Operating Temperature | -55 (°C) |
| Voltage (V) | 6.3 (V dc) |
Inventory for the T520B107M006ATE015 by KEMET from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,791
|
|
Visit Site | |
|
★ Featured
|
53,011
|
|
Visit Site | |
|
★ Featured
|
80,000
|
1,620 x $0.21
|
Visit Site | |
| RS Americas |
150
|
|
Visit Site | |
| Verical |
2,000
|
|
Visit Site |
No issues have been reported for the T520B107M006ATE015
If you experienced any issues with the symbol or footprint, please report it.
