T520D337M006ATE015

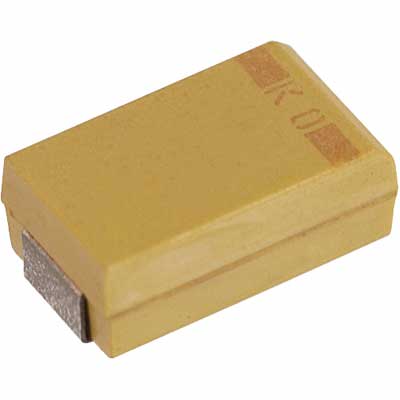

Capacitor,Tantalum,330 uF,20%,6.3 VDC,SMT,7343 mm,ESR 0.015 Ohms,Cut Tape | KEMET T520D337M006ATE015
Availability: Out of Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T520D337M006ATE015 by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

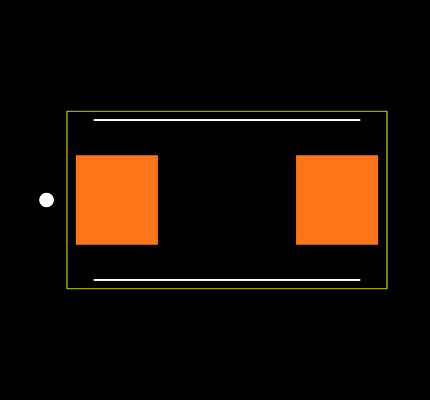

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T520D337M006ATE015
| Part Name | T520D337M006ATE015 |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dielectric Material Family | Tantalum |
| Dimensions | 7.3 x 4.3 x 2.8 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±20 (%) |
| Series | T520 |
| Depth | 4.3 (mm) |
| Dissipation Factor | 10 (%) |
| Height | 2.8 (mm) |
| Capacitance | 330 (µF) |
| Length | 7.3 (mm) |
| Technology | Polymer |
| Equivalent Series Resistance | 15 (mΩ) |
| Leakage Current (A) | 208 μA |
| Electrolyte Type | Solid |
| Package/Case | 7343-31 |
| Maximum Operating Temperature | +105 (°C) |
| Minimum Operating Temperature | -55 (°C) |
| Voltage (V) | 6.3 (V dc) |
No issues have been reported for the T520D337M006ATE015
