T9AS5D12-12

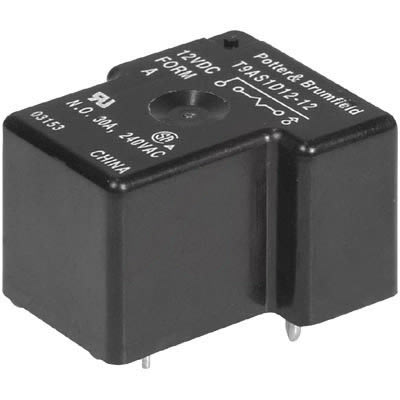

Relay, E-Mech, Power, SPDT, 20A, Ctrl-V 12DC, Vol-Rtg 240AC, PCB Mnt, | TE Connectivity T9AS5D12-12
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the T9AS5D12-12 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the T9AS5D12-12
| Part Name | T9AS5D12-12 |
| Manufacturer | TE Connectivity |
| Category | Relays |
| Insulation Initial Dielectric Between Contacts & Coil | 2500 |
| Product Weight | .918 |
| Coil Special Features | UL Coil Insulation Class F |
| Contact Limiting Making Current (A) | 20 |
| Height Class (Mechanical) | 25 – 30 |
| Insulation Creepage Between Contact & Coil | 6.36 |
| Product Width | 27.4 |
| Insulation Initial Resistance | 1000 |
| Contact Material | AgCdO |
| Coil Power Rating DC | 1000 |
| Contact Limiting Continuous Current (A) | 20 |
| Contact Switching Voltage (Max) (V) | 277 |
| Coil Resistance | 144 |
| Contact Current Class (A) | 10 – 20 |
| Contact Arrangement | 1 Form C (CO) |
| Contact Number of Poles | 1 |
| Insulation Clearance Between Contact & Coil | 3.18 |
| TE Internal Number | 3-1393210-3 |
| Product Height | .803 |
| Insulation Initial Dielectric Between Coil & Contact Class | 1500 – 2500 |
| Width Class (Mechanical) | 25 – 30 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 1.281 |
| Insulation Clearance Class | 2.5 – 4 |
| Coil Voltage Rating (V) | 12 |
| Packaging Method | Bundle |
| Environmental Ambient Temperature (Max) | 185 |
| Contact Switching Load (Min) | 1000mA @ 5V |
| Insulation Special Features | 6000V Initial Surge Withstand Voltage between Contacts & Coil |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Environmental Ambient Temperature Class | 70 – 85 |
| Length Class (Mechanical) | 30 – 35 |
| Contact Limiting Short-Time Current (A) | 20 |
| Contact Limiting Breaking Current (A) | 20 |
| Coil Power Rating Class | 800 – 1000 |
| Contact Current Rating (Max) (A) | 20 |
| Contact Voltage Rating (V) | 277 |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 1500 |
| Insulation Creepage Class | 5.5 – 8 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | PCB Mount |
| Series | T9A |
| Latching | No |
| Coil Voltage (V) | 12 (V dc) |
| Contact Configuration | SPDT |
| Switching Current (A) | 20 (A) |
| Application | Power |
| Number Of Poles | 1 |
| Terminal Type | PCB Pin |
