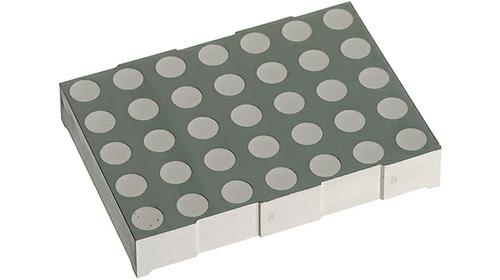

TA20-11EWA
Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Red 2V - 1.50" L x 2.09" W x 0.33" H (38.10mm x 53.10mm x 8.50mm)
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TA20-11EWA by Kingbright and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

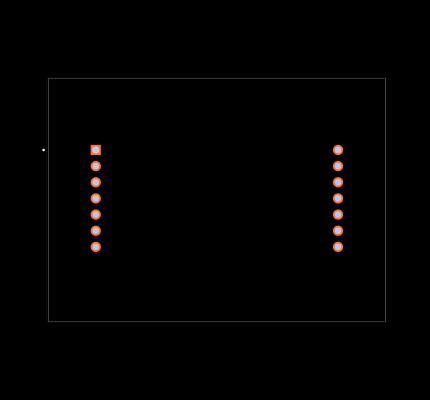

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TA20-11EWA
| Part Name | TA20-11EWA |
| Manufacturer | Kingbright |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dot Matrix Dimensions | 7 x 5 |
| Dominant Wavelength | 625 nm |
| Dot Matrix Format | 5 x 7 |
| External Depth | 8.5 (mm) |
| Forward Current (A) | 30 (mA) |
| Common Connection | Anode |
| Character Width | 36 (mm) |
| Dots Wide | 5 |
| Forward Voltage (V) | 2 V |
| Luminous Intensity | 10 mcd |
| Maximum Operating Temperature | +85 (°C) |
| Dots High | 7 |
| Operating Temperature Range | -40 → +85 (°C) |
| Character Height | 52 (mm) |
| Led Colour S | Red |
| External Dimensions | 53 x 37.65 x 8.45 (mm) |
| Display Type | Dot Matrix |
| Colour Of Face | Grey |
| Mounting Type | Through Hole |
| Series | TA20 |
| Power Dissipation | 75 (mW) |
| Minimum Operating Temperature | -40 (°C) |
| External Height | 53 (mm) |
| External Width | 37.7 (mm) |
Inventory for the TA20-11EWA by Kingbright from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
100
|
|
Visit Site | |
| RS UK |
96
|
|
Visit Site |
No issues have been reported for the TA20-11EWA
