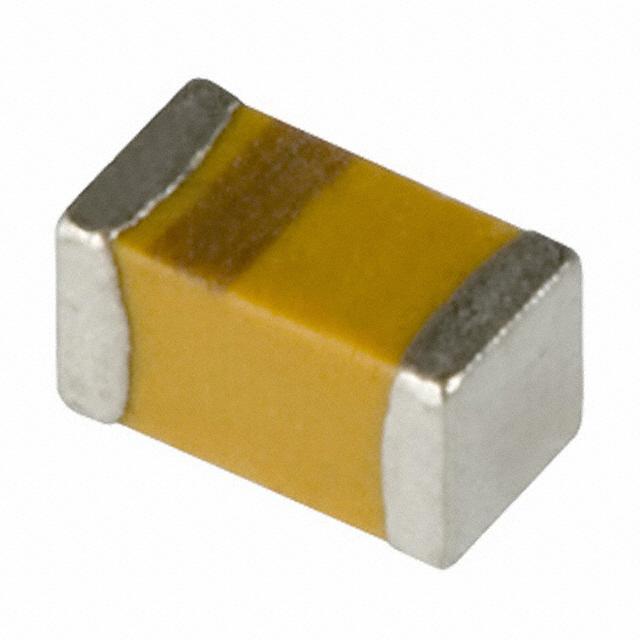

TACL225K010XTA
TACmicrochip,2.2 uF,10 V | AVX TACL225K010XTA
Availability: In Stock
Package Type: 603-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TACL225K010XTA by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

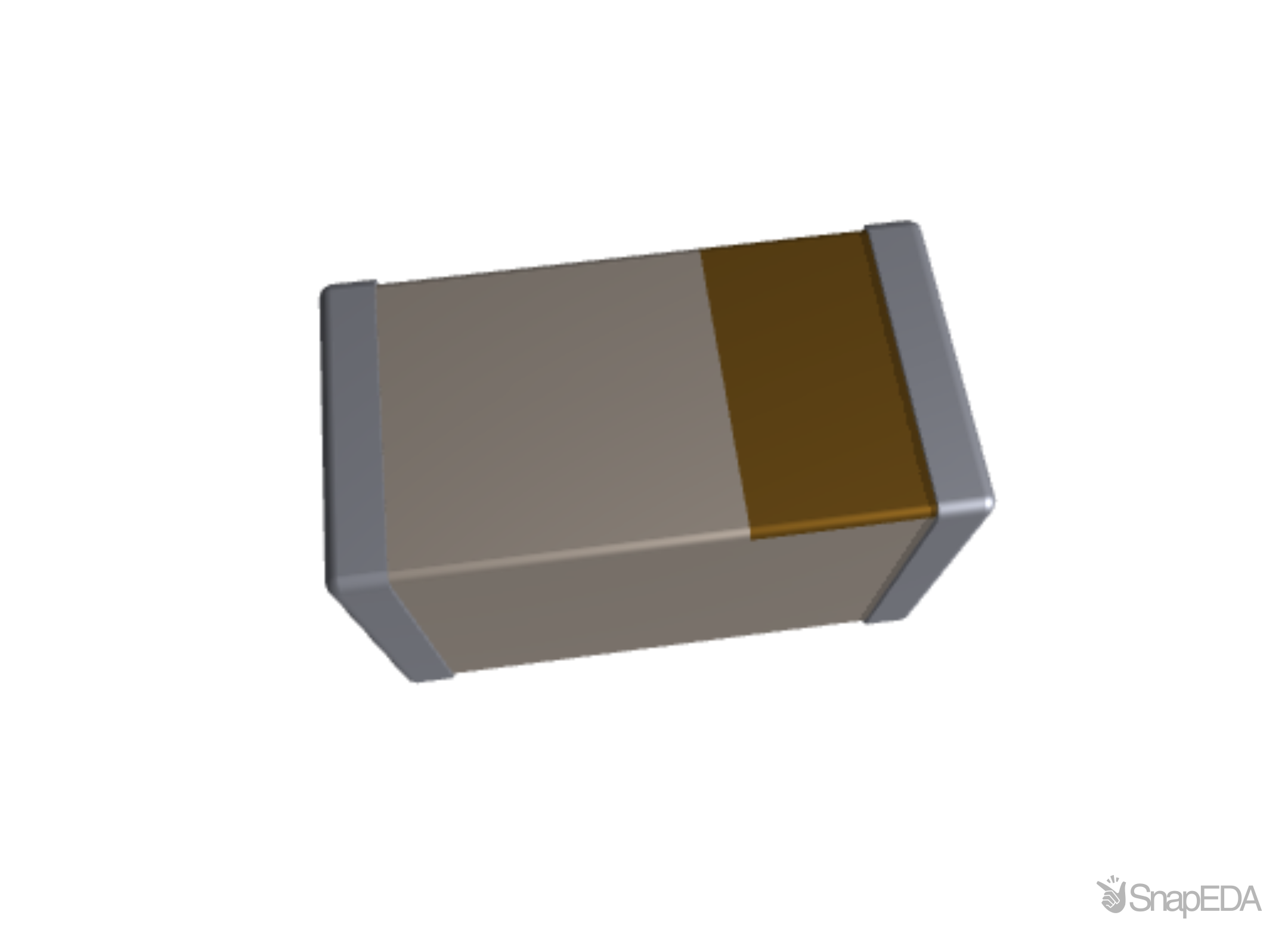

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TACL225K010XTA
| Part Name | TACL225K010XTA |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 1.6 x 0.85 x 0.85 (mm) |
| Dissipation Factor | 6 (%) |
| Capacitance | 2.2 (µF) |
| Tolerance | ±10 (%) |
| Surge Voltage (V) | 13 V @ ≤+85°C |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMT |
| Tolerance Plus | +10 (%) |
| Depth | 0.85 (mm) |
| Equivalent Series Resistance | 7.5 (Ω) |
| Leakage Current (A) | 0.5 μA |
| Lead Pitch | 0.55 (mm) |
| Polarised | Polar |
| Mounting Type | Surface Mount |
| Package Case | 0603 (1608M) |
| Series | TAC |
| Length | 1.6 (mm) |
| Height | 0.85 (mm) |
| Tolerance Minus | -10 (%) |
| Voltage (V) | 10 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
