TAJA105K020RNJ

Name: TAJA105K020RNJ
Brand: AVX

Capacitor, 1 uF, 20 VDC, 26 V @ 85 C, +/- 10%, A, 9 Ohms (Max.) @ 100 kHz, SMD | AVX TAJA105K020RNJ

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the TAJA105K020RNJ by AVX and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

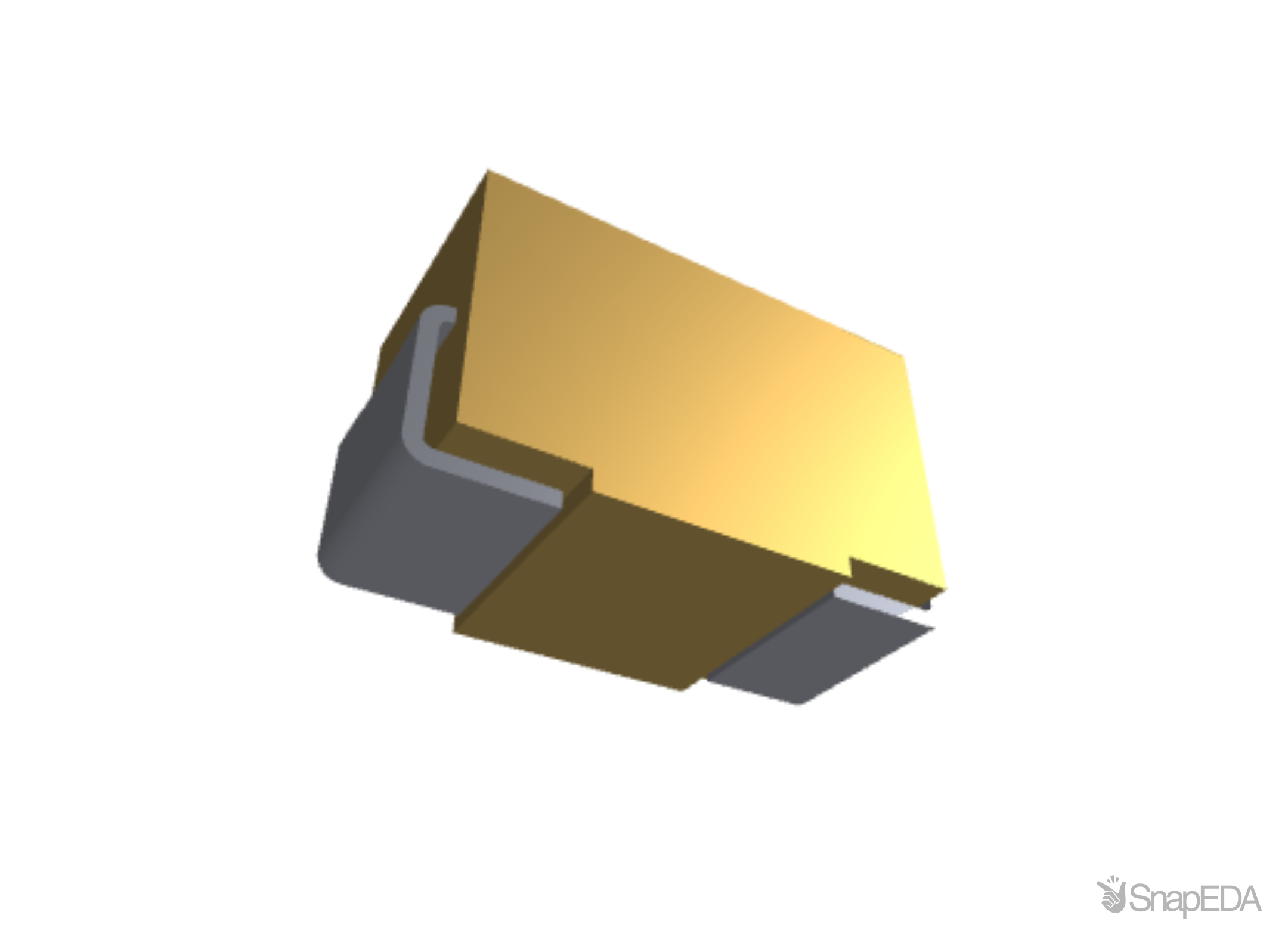

3D Model
