TAJA106K006RNJ
Capacitor, 10 uF, 6.3 VDC, 8 V @ 85 C, +/- 10%, A, 4 Ohms (Max.) @ 100 kHz, SMD | AVX TAJA106K006RNJ
Availability: Out of Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TAJA106K006RNJ by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

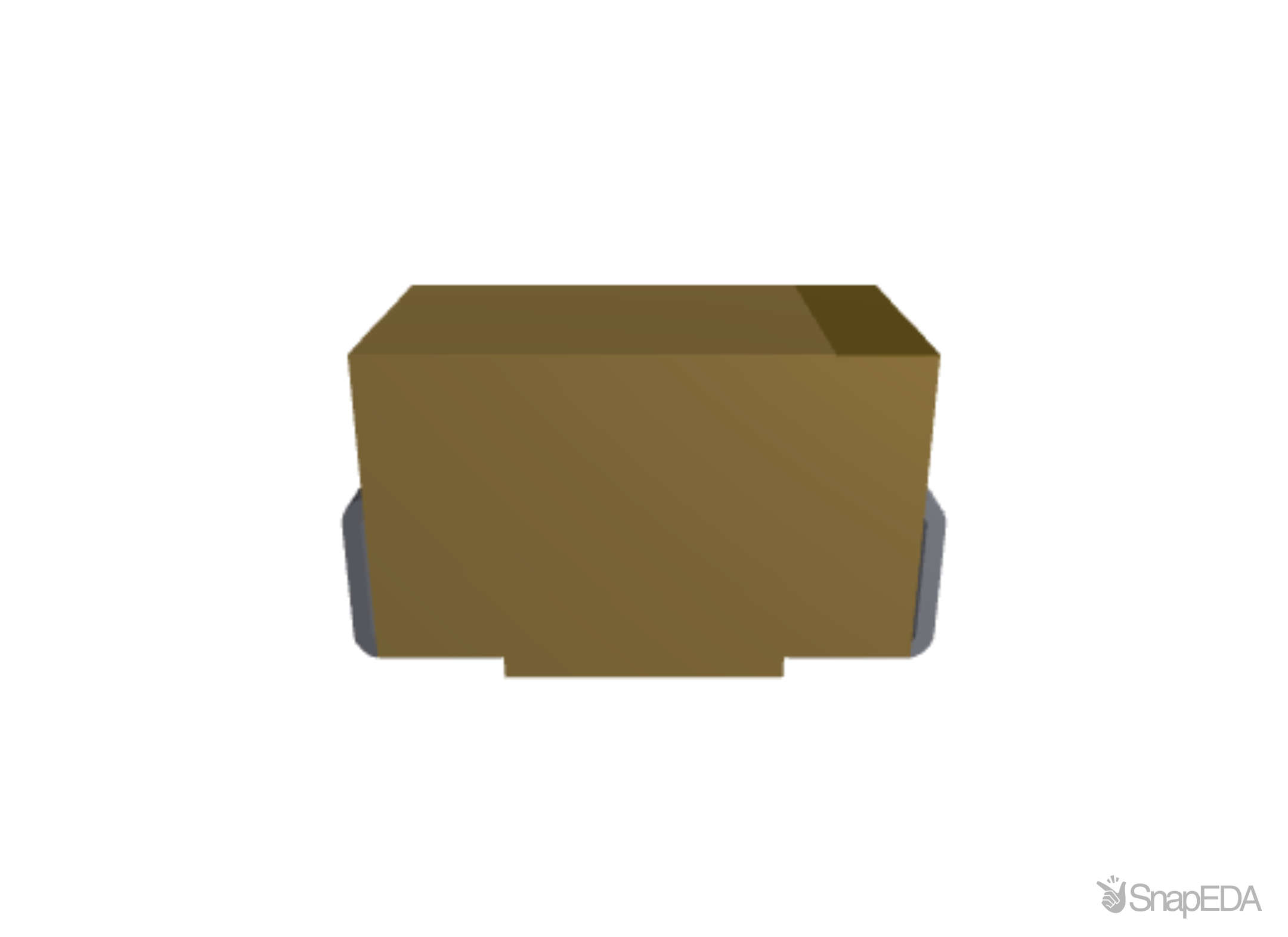

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TAJA106K006RNJ
| Part Name | TAJA106K006RNJ |
| Manufacturer | AVX |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Surge Voltage (V) | 5 V dc @ +125 °C, 8 V dc @ +85 °C |
| Dissipation Factor | 6 (%) |
| Capacitance | 10 (µF) |
| Tolerance | ±10 (%) |
| Dimensions | 3.2 x 1.6 x 1.6 (mm) |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMT |
| Tolerance Plus | +10 (%) |
| Length | 3.2 (mm) |
| Equivalent Series Resistance | 4 (Ω) |
| Leakage Current (A) | 0.6 μA |
| Lead Pitch | 1.1 (mm) |
| Polarised | Polar |
| Mounting Type | Surface Mount |
| Package Case | 1206 (3216M) |
| Series | TAJ |
| Depth | 1.6 (mm) |
| Height | 1.6 (mm) |
| Tolerance Minus | -10 (%) |
| Voltage (V) | 6.3 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
