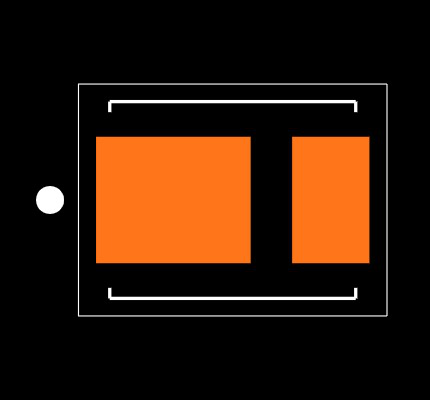

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
TAJB106M016RNJ
Capacitor;Tantalum;Cap 10 uF;Tol 20%;Vol-Rtg 16 VDC;SMT;3528;ESR 2.1 Ohms;TR | AVX TAJB106M016RNJ
Availability: In Stock
Package Type: 1411
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TAJB106M016RNJ by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

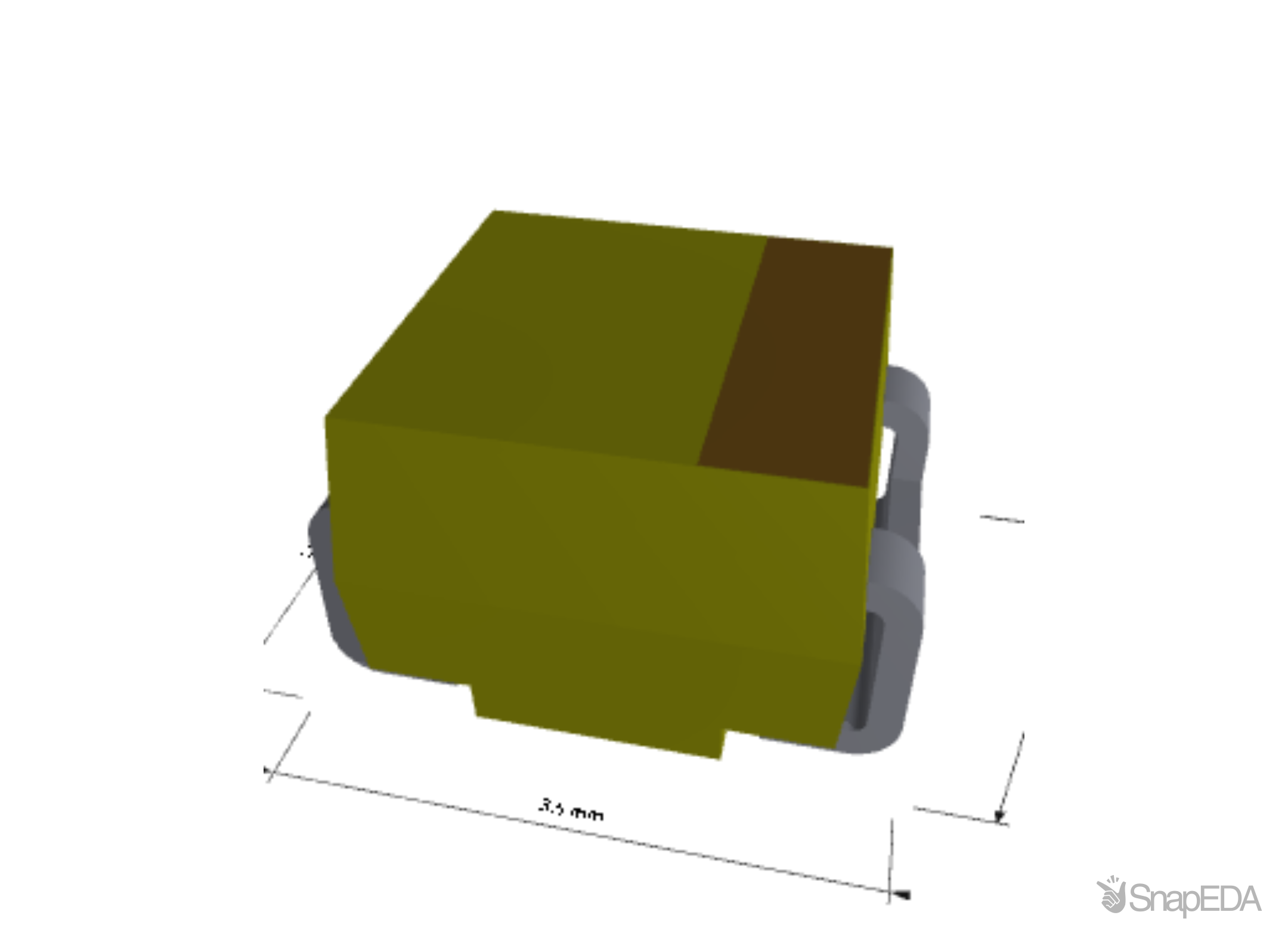

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TAJB106M016RNJ
| Part Name | TAJB106M016RNJ |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Surge Voltage (V) | 13 V @ ≤+125 °C, 20 V @ ≤+85 °C |
| Dissipation Factor | 6 (%) |
| Capacitance | 10 (µF) |
| Tolerance | ±20 (%) |
| Dimensions | 3.5 x 2.8 x 1.9 (mm) |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMT |
| Tolerance Plus | +20 (%) |
| Depth | 2.8 (mm) |
| Equivalent Series Resistance | 2.8 (Ω) |
| Leakage Current (A) | 1.6 μA |
| Lead Pitch | 1.4 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 3528-21 |
| Series | TAJ |
| Length | 3.5 (mm) |
| Height | 1.9 (mm) |
| Tolerance Minus | -20 (%) |
| Voltage (V) | 16 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
