TAJB107K006RNJ
Capacitor;Tantalum;Cap 100uF;Tol 10%;SMT;Vol-Rtg 6.3V;Code 3528;TR | AVX TAJB107K006RNJ
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TAJB107K006RNJ by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

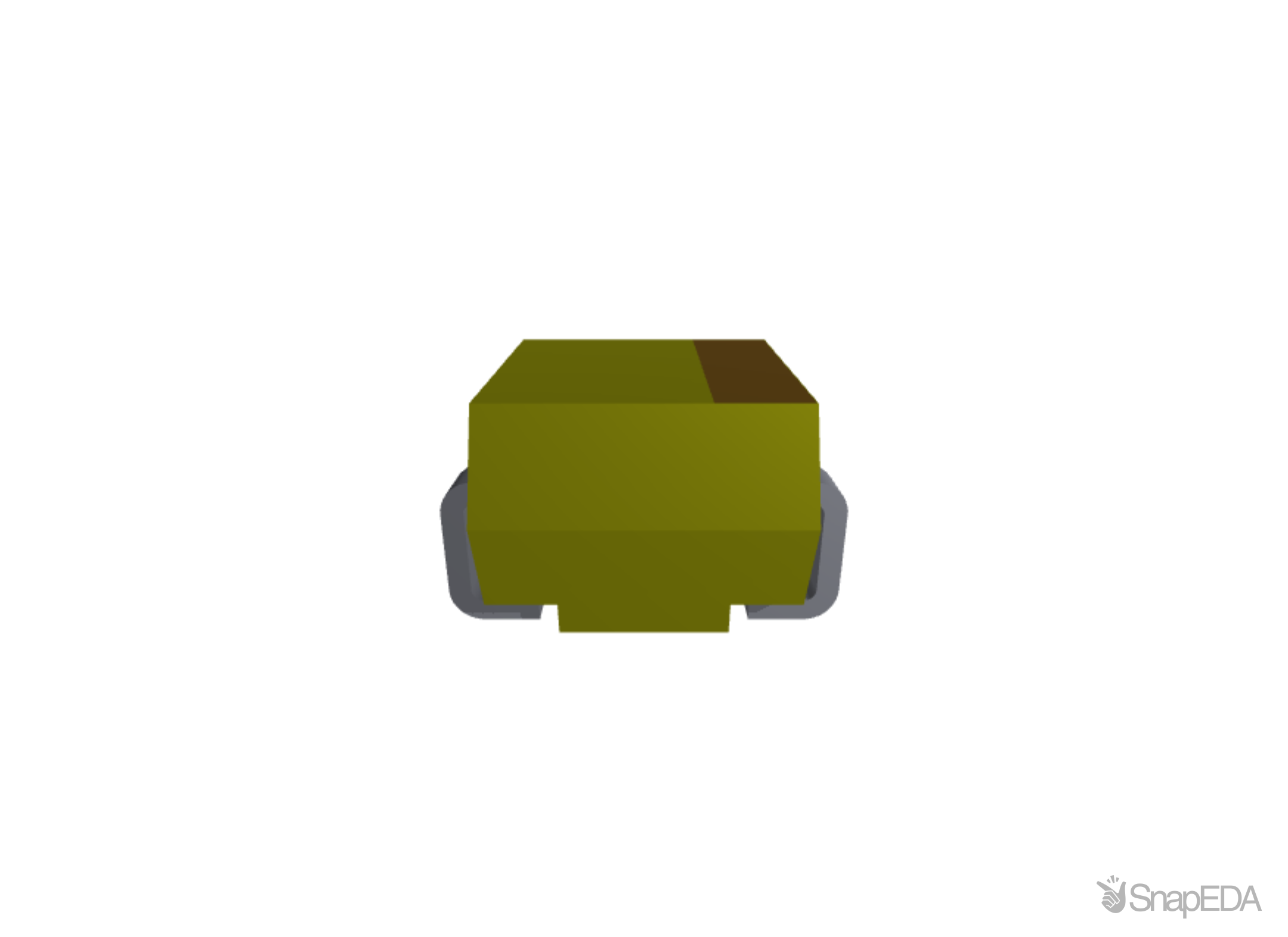

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TAJB107K006RNJ
| Part Name | TAJB107K006RNJ |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 2.8 (mm) |
| Tolerance Plus | +10 (%) |
| Dimensions | 3.5 x 2.8 x 1.9 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±10 (%) |
| Package Case | 3528-21 |
| Series | TAJ |
| Leakage Current (A) | 6.3 μA |
| Length | 3.5 (mm) |
| Equivalent Series Resistance | 1.7 (Ω) |
| Height | 1.9 (mm) |
| Capacitance | 100 (µF) |
| Tolerance Minus | -10 (%) |
| Dissipation Factor | 10 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125 (°C) |
| Technology | MnO2 |
| Terminal Type | SMT |
| Voltage (V) | 6.3 (V dc) |
Inventory for the TAJB107K006RNJ by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
468
|
|
Visit Site | |
|
★ Featured
|
149,393
|
2,820 x $0.11
|
Visit Site | |
| Arrow Europe |
278,000
|
2,000 x $0.54
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
4,900
|
|
Visit Site | |
| Farnell UK |
1,375
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Newark |
1,875
|
|
Visit Site | |
| RS UK |
125
|
25 x $0.31
|
Visit Site | |
| Rutronik |
354,000
|
|
Visit Site | |
| Schukat Electronic |
4,900
|
|
Visit Site | |
| TME |
46,152
|
|
Visit Site | |
| TTI Europe |
32,000
|
|
Visit Site | |
| Verical |
1,245
|
|
Visit Site | |
| element14 Singapore |
1,375
|
|
Visit Site |
No issues have been reported for the TAJB107K006RNJ
If you experienced any issues with the symbol or footprint, please report it.
