TAJB225K020RNJ
Capacitor, Tantalum, 2.2 uF, 20 V, 26 V, +/-10%, B, 3.5 Ohms (Max.) @ 100 kHz | AVX TAJB225K020RNJ
Availability: In Stock
Package Type: 1210
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TAJB225K020RNJ by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint

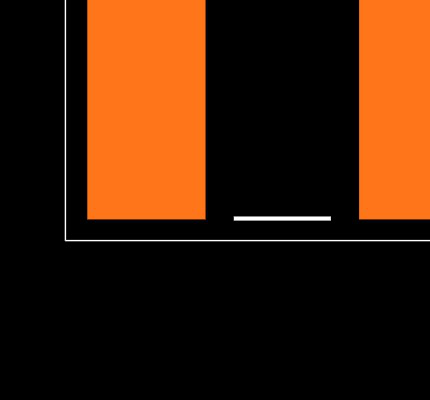

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TAJB225K020RNJ
| Part Name | TAJB225K020RNJ |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Surge Voltage (V) | 16 V dc @ +125 °C, 26 V dc @ +85 °C |
| Dissipation Factor | 6 (%) |
| Capacitance | 2.2 (µF) |
| Tolerance | ±10 (%) |
| Dimensions | 3.5 x 2.8 x 1.9 (mm) |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMT |
| Tolerance Plus | +10 (%) |
| Depth | 2.8 (mm) |
| Equivalent Series Resistance | 3.5 (Ω) |
| Leakage Current (A) | 0.5 μA |
| Lead Pitch | 1.4 (mm) |
| Polarised | Polar |
| Mounting Type | Surface Mount |
| Package Case | 1210 (3225M) |
| Series | TAJ |
| Length | 3.5 (mm) |
| Height | 1.9 (mm) |
| Tolerance Minus | -10 (%) |
| Voltage (V) | 20 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
