TAJC685K050RNJ
Conventional MnO2,6.8 uF,50 V | AVX TAJC685K050RNJ
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TAJC685K050RNJ by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

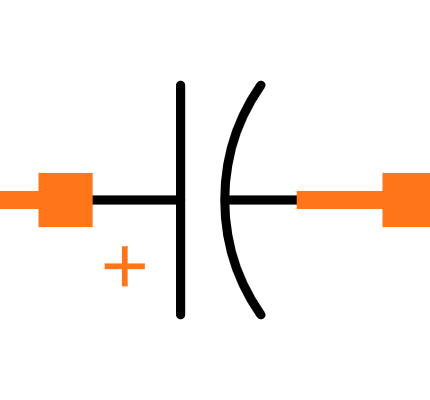

Symbol
No web preview
This Symbol is Available for

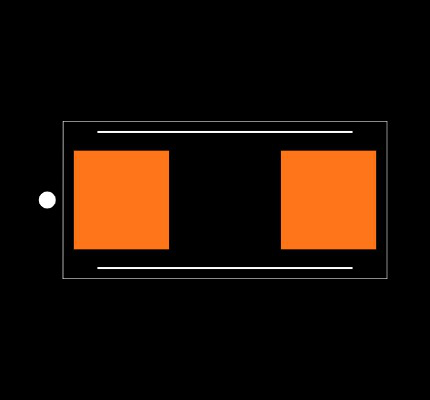

Footprint
No web preview
This Footprint is Available for

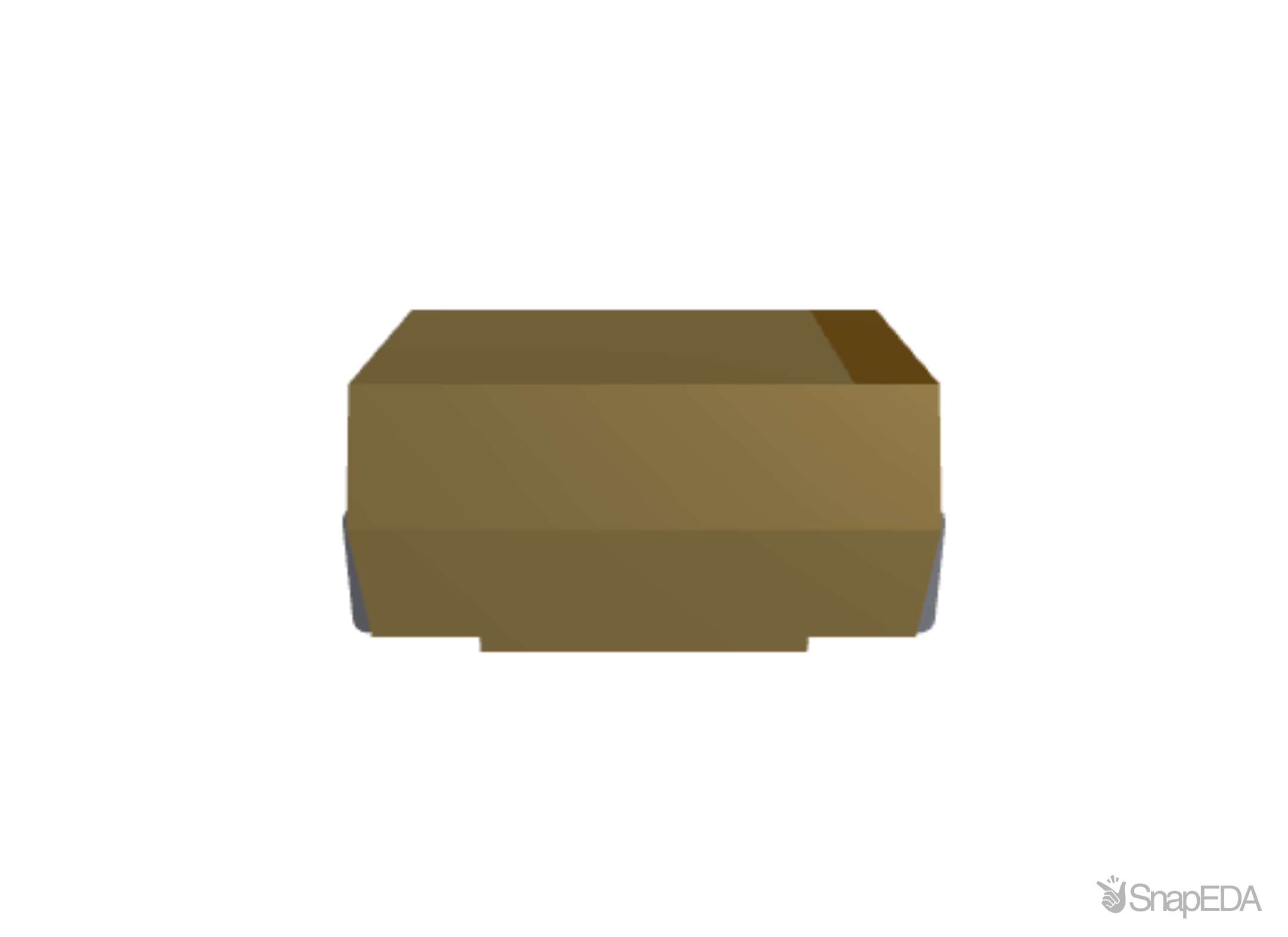

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TAJC685K050RNJ
| Part Name | TAJC685K050RNJ |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 3.2 (mm) |
| Tolerance Plus | +10 (%) |
| Dimensions | 6 x 3.2 x 2.6 (mm) |
| Mounting Type | Surface Mount |
| Tolerance | ±10 (%) |
| Package Case | 6032-28 |
| Series | TAJ |
| Leakage Current (A) | 3.4 μA |
| Length | 6 (mm) |
| Equivalent Series Resistance | 1 (Ω) |
| Height | 2.6 (mm) |
| Capacitance | 6.8 (µF) |
| Tolerance Minus | -10 (%) |
| Dissipation Factor | 6 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +125 (°C) |
| Technology | MnO2 |
| Terminal Type | Surface Mount |
| Voltage (V) | 50 (V dc) |
