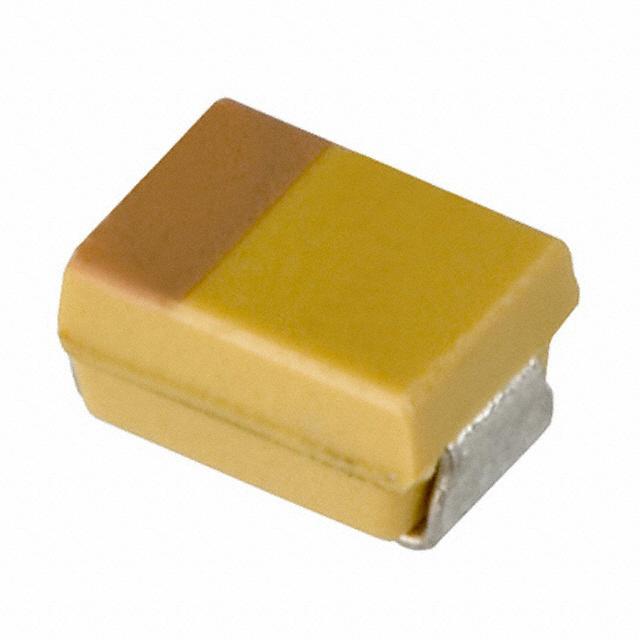

TAJR475K010RNJ
4.7 µF Molded Tantalum Capacitors 10 V 0805 (2012 Metric) 9Ohm
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TAJR475K010RNJ by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TAJR475K010RNJ
| Part Name | TAJR475K010RNJ |
| Manufacturer | AVX |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Surge Voltage (V) | 13 V dc @ +85°C, 8 V dc @ +125°C |
| Dissipation Factor | 6 (%) |
| Capacitance | 4.7 (µF) |
| Tolerance | ±10 (%) |
| Dimensions | 2.05 x 1.3 x 1.2 (mm) |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | SMT |
| Tolerance Plus | +10 (%) |
| Depth | 1.3 (mm) |
| Equivalent Series Resistance | 9 (Ω) |
| Leakage Current (A) | 0.5 μA |
| Polarised | Polar |
| Mounting Type | Surface Mount |
| Package Case | 2012-12 |
| Series | TAJ |
| Length | 2.05 (mm) |
| Height | 1.2 (mm) |
| Tolerance Minus | -10 (%) |
| Voltage (V) | 10 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Technology | Electrolytic |
