TBLH10-500-03BK
SnapVerified
2~24 Poles, Screwless, Horizontal, 5.00 Pitch, 24~16 (AWG), Terminal Block Connector
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TBLH10-500-03BK by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

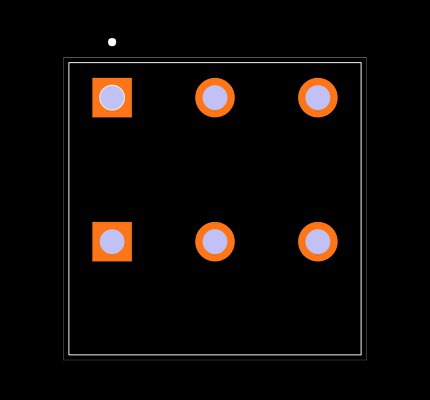

Footprint
No web preview
This Footprint is Available for

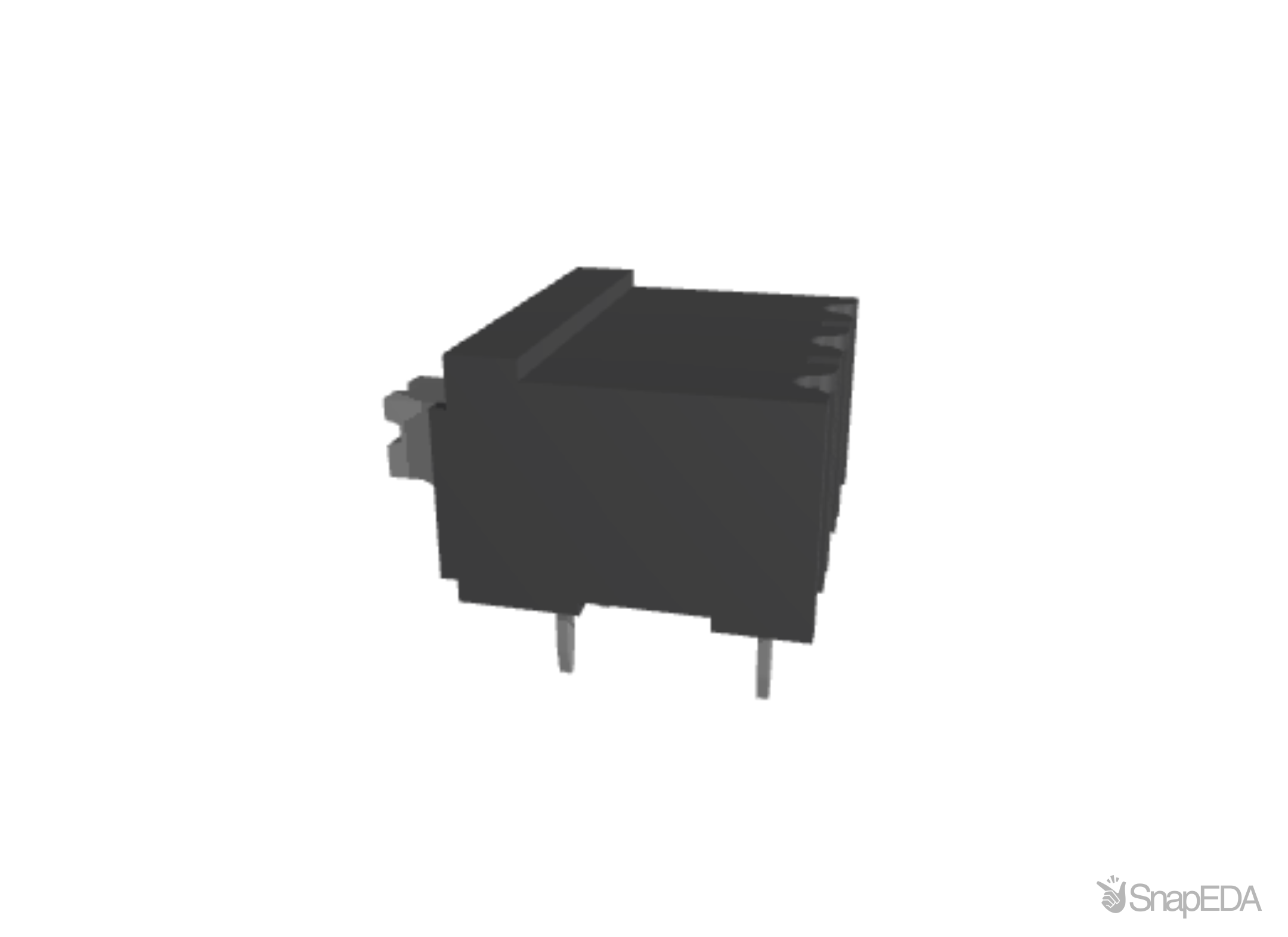

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TBLH10-500-03BK
| Part Name | TBLH10-500-03BK |
| Manufacturer | Same Sky |
| Category | Interconnect > Connectors > Terminal Blocks |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/tblh10-500-series |
| Operating Temp MIN (°C) | -40 |
| Operating Temperature | [-40.0, 130.0] |
| IEC Voltage Rating (V) | 320.0 |
| IEC Current Rating (A) | 17.5 |
| Number of Positions | 3.0 |
| SKU Number | PartPre |
| Operating Temp MAX (°C) | 130 |
| UL Voltage Rating (Vdc) (V) | 300 |
| Pitch (mm) | 5 |
| Wire Gauge (AWG) | 24~16 |
| Pitch | 5 mm |
| Screw Type | Screwless |
| UL Current Rating (A) | 10 |
| RoHS | True |
| Terminal Block Style | Screwless |
| Orientation | Horizontal |
| Color | Black |
| Series | TBLH10-500 Series |
| Product Link | https://www.cuidevices.com/product/interconnect/connectors/terminal-blocks/tblh10-500-series |
| IEC Voltage Rating (Vdc) (V) | 320 |
| Poles | 03 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TBLH10-500-03BK by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,058
|
|
Visit Site |
No issues have been reported for the TBLH10-500-03BK
If you experienced any issues with the symbol or footprint, please report it.
