TC1046VNBTR
Sensor; High Precision TEMP-to-Voltage Converter (6.25MV/OC), SOT-23B-3-TR | Microchip Technology Inc. TC1046VNBTR
Availability: In Stock
Package Type: SOT-23
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TC1046VNBTR by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

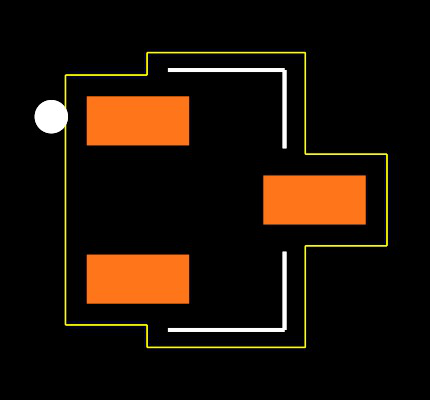

Footprint
No web preview
This Footprint is Available for

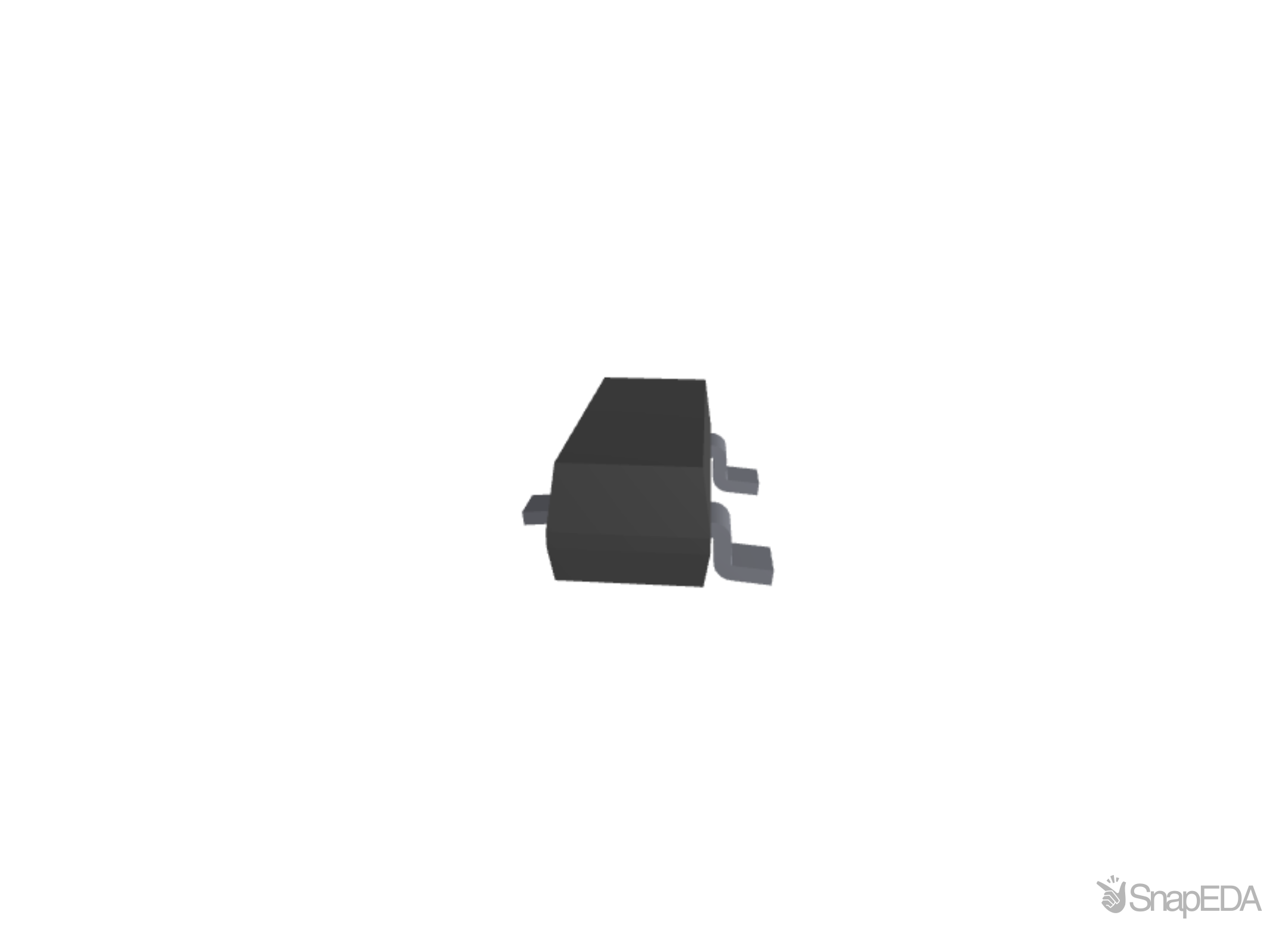

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TC1046VNBTR
| Part Name | TC1046VNBTR |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.05 x 1.4 x 1.02 (mm) |
| Maximum Operating Supply Voltage (V) | 4.4 V |
| Operating Temperature Range | -40 to +125 °C |
| Sensor Gain | 6.25 (mV/°C) |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Output Type | Voltage |
| Height | 1.02 (mm) |
| Width | 1.4 (mm) |
| Length | 3.05 (mm) |
| Package Type | SOT-23B |
| Sensor Function | Temperature |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Accuracy | ±2 (°C) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Interface Type | Analogue |
Inventory for the TC1046VNBTR by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,922
|
|
Visit Site | |
|
★ Featured
|
4,920
|
|
Visit Site | |
|
★ Featured
|
54,000
|
520 x $0.58
|
Visit Site | |
| Onlinecomponents |
3,200
|
|
Visit Site | |
| Verical |
951
|
|
Visit Site |
No issues have been reported for the TC1046VNBTR
