TC1413NEOA

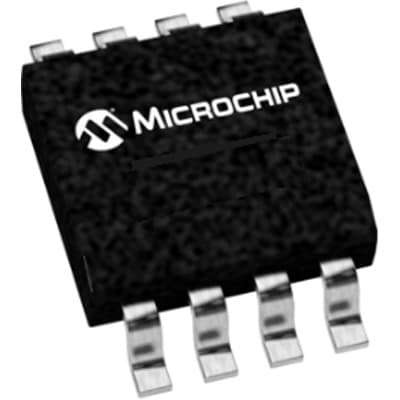

Microchip TC1413NEOA,MOSFET Power Driver 3A,4.5 to 16V,Non-Inverting,8-Pin SOIC | Microchip Technology Inc. TC1413NEOA
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TC1413NEOA by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

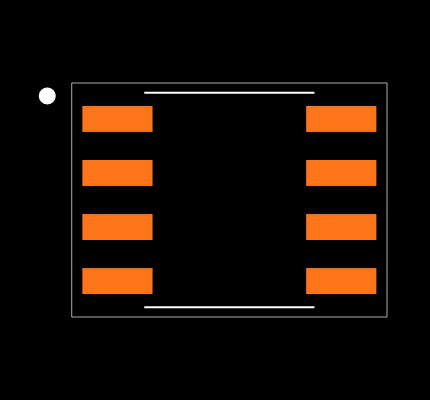

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TC1413NEOA
| Part Name | TC1413NEOA |
| Manufacturer | Microchip Technology |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Number Of Outputs | 1 |
| Output Current (A) | 3 A |
| Mounting Type | Surface Mount |
| Logic Type | CMOS, TTL |
| Number Of Drivers | 1 |
| Package Type | SOIC |
| Driver Type | MOSFET |
| Topology | Low Side |
| Pin Count | 8 |
| Supply Voltage (V) | 16 (V) |
No issues have been reported for the TC1413NEOA
If you experienced any issues with the symbol or footprint, please report it.
