TCAN1042HVD
Fault Protected CAN Transceiver With Flexible Data-Rate
Availability: In Stock
Package Type: SOIC-8

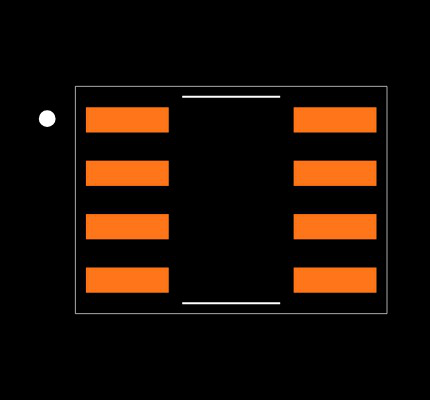

CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TCAN1042HVD by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TCAN1042HVD
| Part Name | TCAN1042HVD |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Data Rate | 2 (Mbps) |
| Mounting Type | Surface Mount |
| Width | 3.98 (mm) |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Length | 5 (mm) |
| Height | 1.5 (mm) |
| Number Of Transceivers | 1 |
| Maximum Supply Current (A) | 2 mA |
| Package Type | SOIC |
| Minimum Operating Temperature | -55 °C |
| Ic Type | CAN Transceiver IC |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Standard Supported | ISO 11898-2 |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
| Power Down Mode | Standby |
| Dimensions | 5 x 3.98 x 1.5 (mm) |
