TCLT1600
Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP (2.54mm)
Availability: In Stock
Package Type: LSOP-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TCLT1600 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

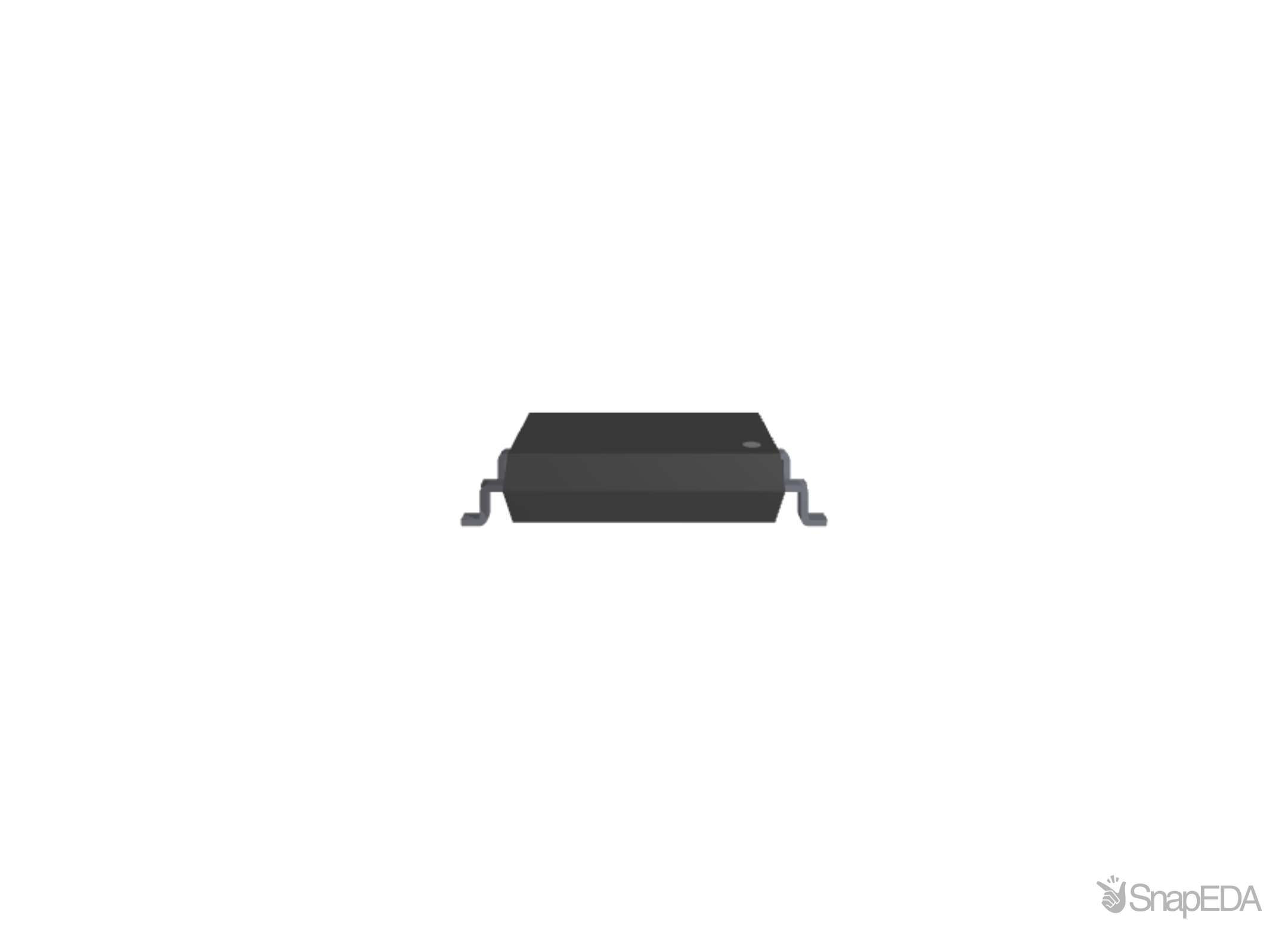

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TCLT1600
| Part Name | TCLT1600 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.6 (V) |
| Output Device | Phototransistor |
| Input Current Type (A) | AC |
| Mounting Type | Surface Mount |
| Series | TCLT |
| Number Of Channels | 1 |
| Typical Rise Time | 3 (µs) |
| Maximum Current Transfer Ratio (A) | 300 (%) |
| Isolation Voltage (V) | 5000 V ac |
| Number Of Pins | 4 |
| Minimum Current Transfer Ratio (A) | 80 (%) |
| Package Type | SOP |
| Maximum Input Current (A) | 60 mA |
| Typical Fall Time | 4.7 (µs) |
Inventory for the TCLT1600 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
5,241
|
|
Visit Site | |
| Newark |
12
|
|
Visit Site | |
| RS UK |
140
|
|
Visit Site | |
| TME |
11,484
|
|
Visit Site | |
| TTI Europe |
3,000
|
|
Visit Site | |
| element14 Singapore |
5,241
|
|
Visit Site |
No issues have been reported for the TCLT1600
