TCM809TENB713
Microchip TCM809TENB713, Processor Supervisor 2.5/3/3.3/5 V, 3-Pin SOT-23B | Microchip Technology Inc. TCM809TENB713
Availability: In Stock
Package Type: SOT-23
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TCM809TENB713 by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

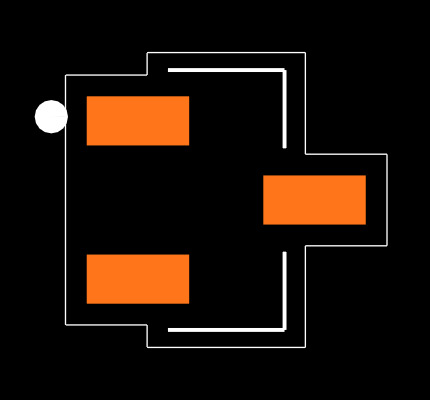

Footprint
No web preview
This Footprint is Available for

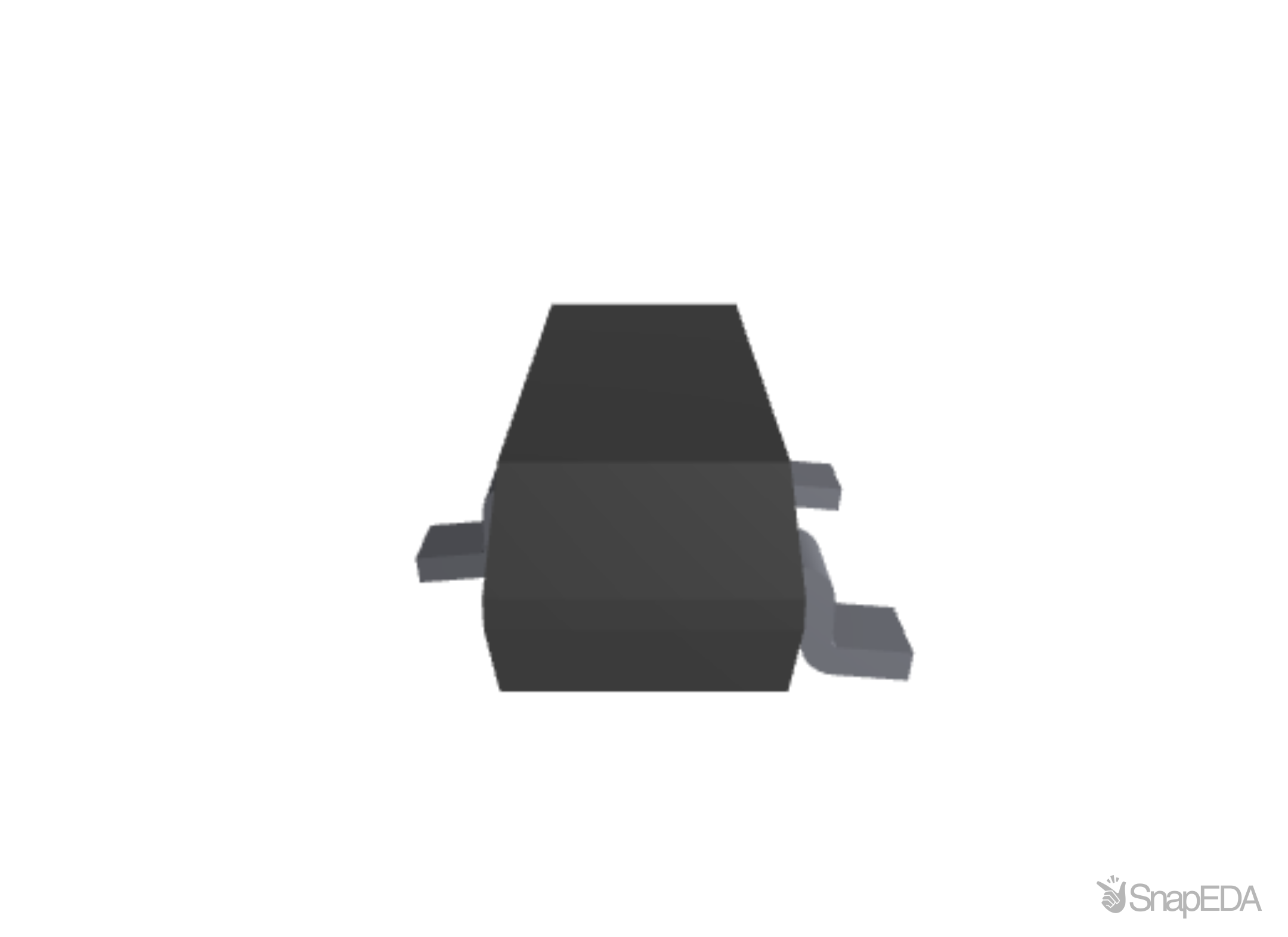

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TCM809TENB713
| Part Name | TCM809TENB713 |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Supervisors | 1 |
| Maximum Monitored Voltage (V) | 3.15 (V) |
| Dimensions | 3.05 x 1.4 x 1.02 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Minimum Monitored Voltage (V) | 3.08 (V) |
| Minimum Operating Supply Voltage (V) | 1 V |
| Output Driver | Active Low, Push-Pull |
| Package Type | SOT-23B |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 3 |
| Maximum Reset Active Time | 560 (ms) |
Inventory for the TCM809TENB713 by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
868
|
|
Visit Site | |
|
★ Featured
|
27,000
|
1,190 x $0.25
|
Visit Site | |
| Arrow Electronics |
43
|
|
Visit Site | |
| Onlinecomponents |
11,730
|
|
Visit Site | |
| Verical |
43
|
24 x $0.29
|
Visit Site |
No issues have been reported for the TCM809TENB713
