TCMT1103.

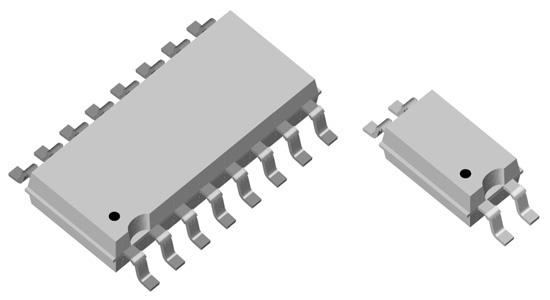

OPTOCOUPLER, TRANSISTOR O/P; No. of Channels:1 Channel; Optocoupler Case Style:SOP; No. of Pins:4Pins; Forward Current If Max:60mA; Isolation Voltage:3.75kV; CTR Min:100%; Collector Emitter Voltage V(br)ceo:70V; Product Range:-; SVHC:No SVHC (15-Jun-2015); Input Current:50mA; No. of Channels:1Channels; Operating Temperature Max:100°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +100°C; Optocoupler Output Type:Phototransistor; Output Voltage:70V
