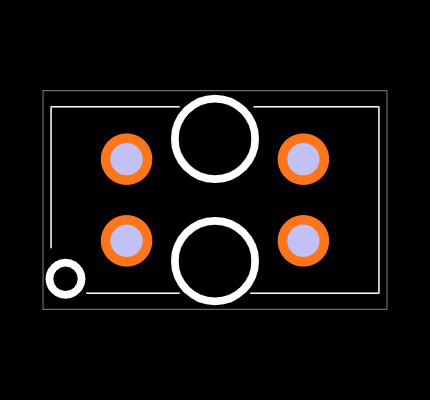

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
TCST2300

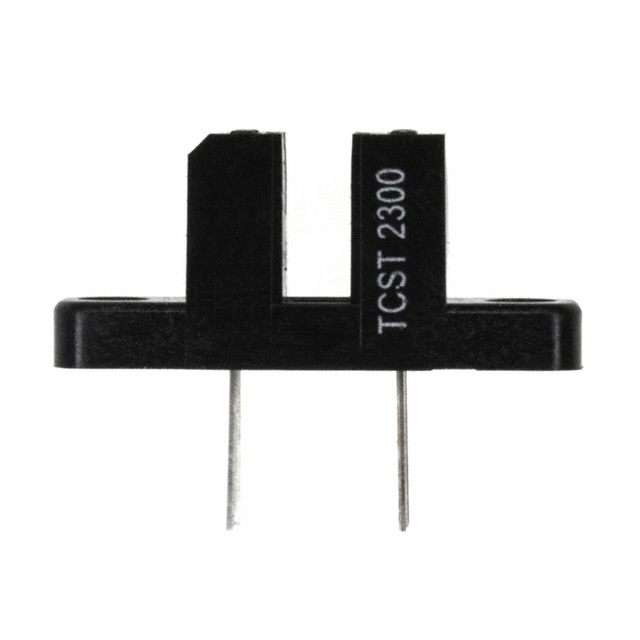

Optical Sensor Through-Beam 0.122" (3.1mm) Phototransistor PCB Mount
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TCST2300 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TCST2300
| Part Name | TCST2300 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Device | Phototransistor |
| Dimensions | 24.5 x 6.3 x 11.1 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -55 → +85 (°C) |
| Typical Rise Time | 10 μ |
| Height | 11.1 (mm) |
| Width | 6.3 (mm) |
| Length | 24.5 (mm) |
| Number Of Pins | 4 |
| Minimum Operating Temperature | -55 (°C) |
| Number Of Channels | 1 |
| Slot Width | 3.1 (mm) |
| Maximum Operating Temperature | 85 (°C) |
| Typical Fall Time | 8 (µs) |
No issues have been reported for the TCST2300
