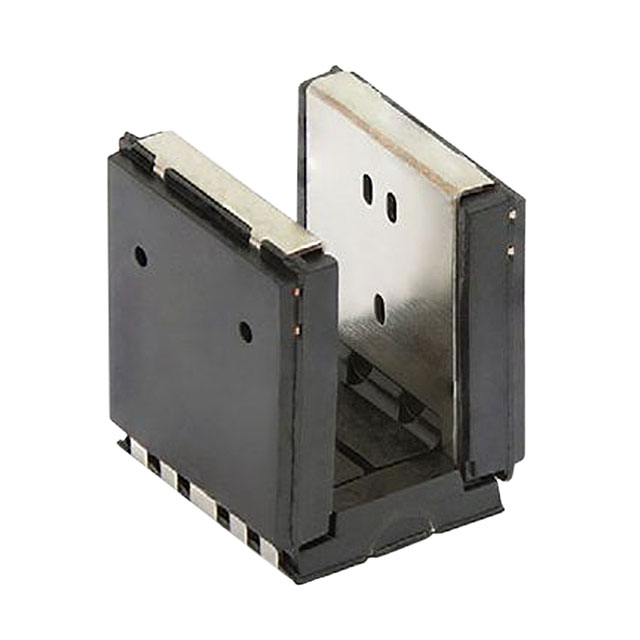

TCUT1630X01
Optical Sensor Through-Beam 0.118" (3mm) Phototransistor Module, No Lead, Slot Type
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TCUT1630X01 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

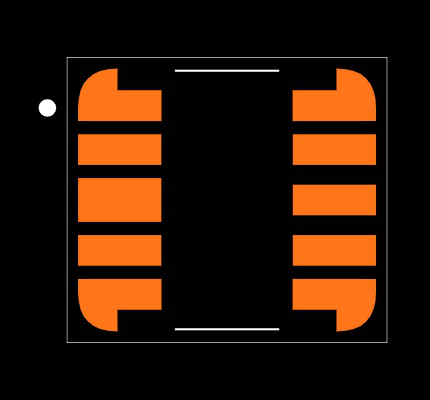

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TCUT1630X01
| Part Name | TCUT1630X01 |
| Manufacturer | Vishay Semiconductor Opto Division |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Device | Phototransistor |
| Dimensions | 5.7 x 5.9 x 7.1 (mm) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +105 (°C) |
| Number Of Channels | 3 |
| Typical Rise Time | 9 (µs) |
| Height | 7.1 (mm) |
| Width | 5.9 (mm) |
| Length | 5.7 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Pins | 10 |
| Slot Width | 3 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Automotive Standard | AEC-Q101 |
| Typical Fall Time | 16 (µs) |
Inventory for the TCUT1630X01 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
998
|
|
Visit Site | |
| RS UK |
1,065
|
1,100 x $0.88
|
Visit Site | |
| TME |
|
1,100 x $1.24
|
Visit Site | |
| TTI Americas |
1,100
|
|
Visit Site | |
| element14 Singapore |
998
|
|
Visit Site |
No issues have been reported for the TCUT1630X01
If you experienced any issues with the symbol or footprint, please report it.
