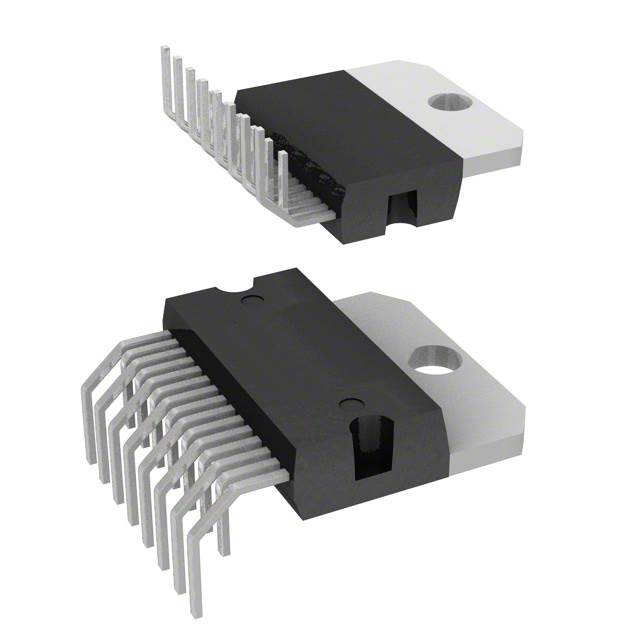

TDA7294
Amplifier IC 1-Channel (Mono) Class AB 15-Multiwatt
Availability: Out of Stock
Package Type: MULTIWATT-15
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TDA7294 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TDA7294
| Part Name | TDA7294 |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Amplifier Class | Class A-B |
| Maximum Power | 100 (W) |
| Dimensions | 19.6 x 5 x 10.7 (mm) |
| Mounting Type | Through Hole |
| Application | Speaker |
| Power Supply Type | Dual |
| Output Type | 1 Channel Mono |
| Input Signal Type | Differential |
| Package Type | MULTIWATT V |
| Minimum Operating Temperature | 0 °C |
| Amplifier Type | Audio Power Amplifier |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 15 |
| Output Signal Type | Single Ended |
