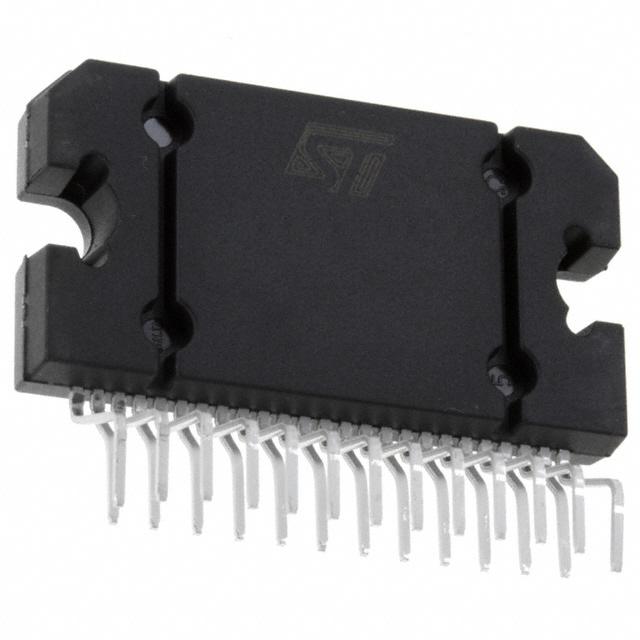

TDA7850
Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Horizontal)
Availability: In Stock
Package Type: FLEXIWATT-25
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TDA7850 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TDA7850
| Part Name | TDA7850 |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Amplifier Class | Class A-B |
| Maximum Power | 30 (W) |
| Output Signal Type | Differential |
| Mounting Type | Through Hole |
| Application | Speaker |
| Power Supply Type | Single |
| Output Type | 2 Channel Stereo |
| Input Signal Type | Single Ended |
| Package Type | FLEXIWATT |
| Amplifier Type | Bridge Amplifier |
| Pin Count | 25 |
| Dimensions | 29.23 x 4.5 x 15.7 (mm) |
Inventory for the TDA7850 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
81
|
|
Visit Site | |
|
★ Featured
|
4,796
|
90 x $3.34
|
Visit Site | |
| Verical |
113
|
7 x $10.03
|
Visit Site |
No issues have been reported for the TDA7850
