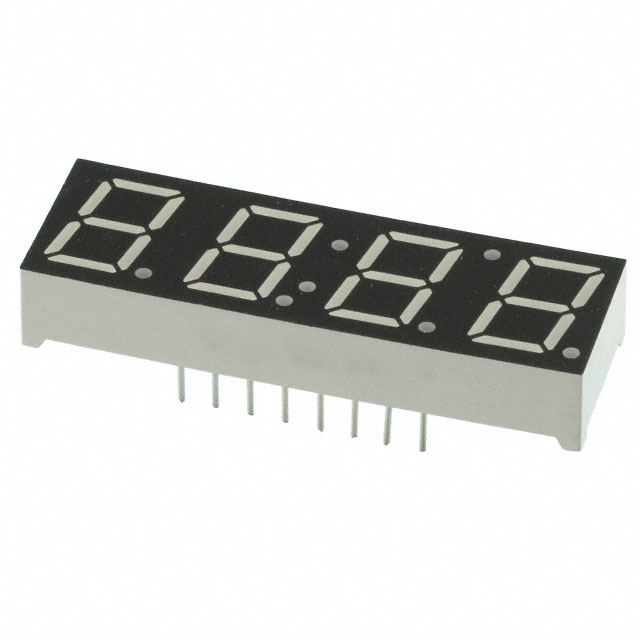

TDCG1060M
Display Modules - LED Character and Numeric Green 7-Segment Clock 4 Character Common Cathode 2V 20mA 0.504" H x 1.583" W x 0.276" D (12.80mm x 40.20mm x 7.00mm) 16-DIP (0.400", 10.16mm)
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TDCG1060M by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

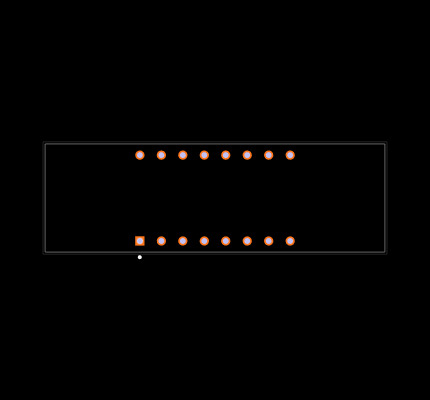

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TDCG1060M
| Part Name | TDCG1060M |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dominant Wavelength | 573 nm |
| Number Of Segments | 7 |
| Forward Current (A) | 25 (mA) |
| Common Connection | Cathode |
| Forward Voltage (V) | 2 V |
| Character Width | 6 (mm) |
| External Depth | 12.8 (mm) |
| Number Of Characters | 4 |
| Luminous Intensity | 4 mcd |
| Maximum Operating Temperature | +85 (°C) |
| Operating Temperature Range | -40 → +85 (°C) |
| Character Height | 10 (mm) |
| External Dimensions | 40.2 x 12.8 x 7 (mm) |
| Led Colour(S) | Green |
| Display Type | 7-Segment |
| Colour Of Face | Grey |
| Mounting Type | Through Hole |
| Power Dissipation | 60 (mW) |
| Minimum Operating Temperature | -40 (°C) |
| Decimal Orientation | Right Side |
| External Height | 7 (mm) |
| External Width | 40.2 (mm) |
No issues have been reported for the TDCG1060M
If you experienced any issues with the symbol or footprint, please report it.
