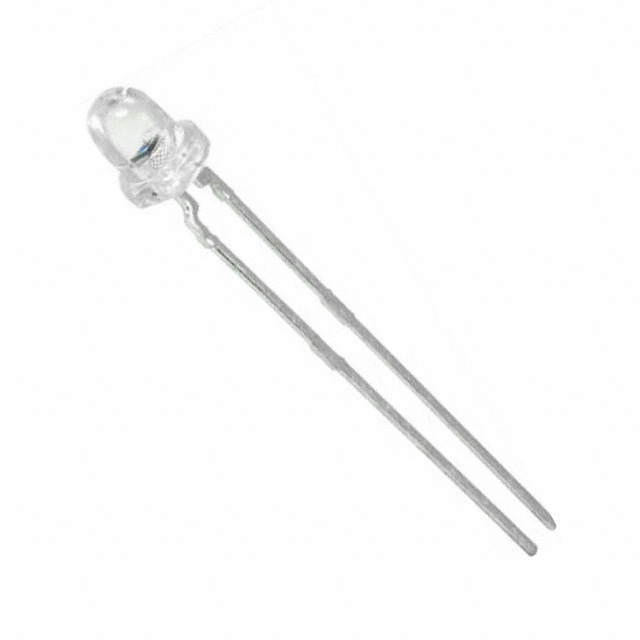

TEFD4300
Photodiode 950nm 100ns 40° Radial
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TEFD4300 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

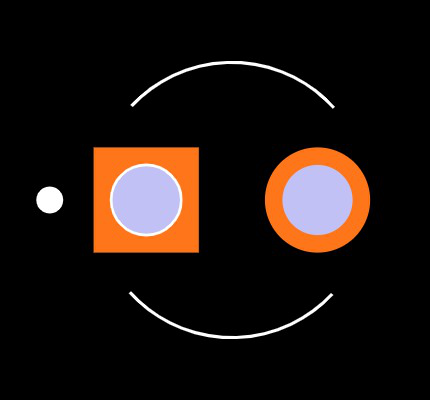

Footprint
No web preview
This Footprint is Available for

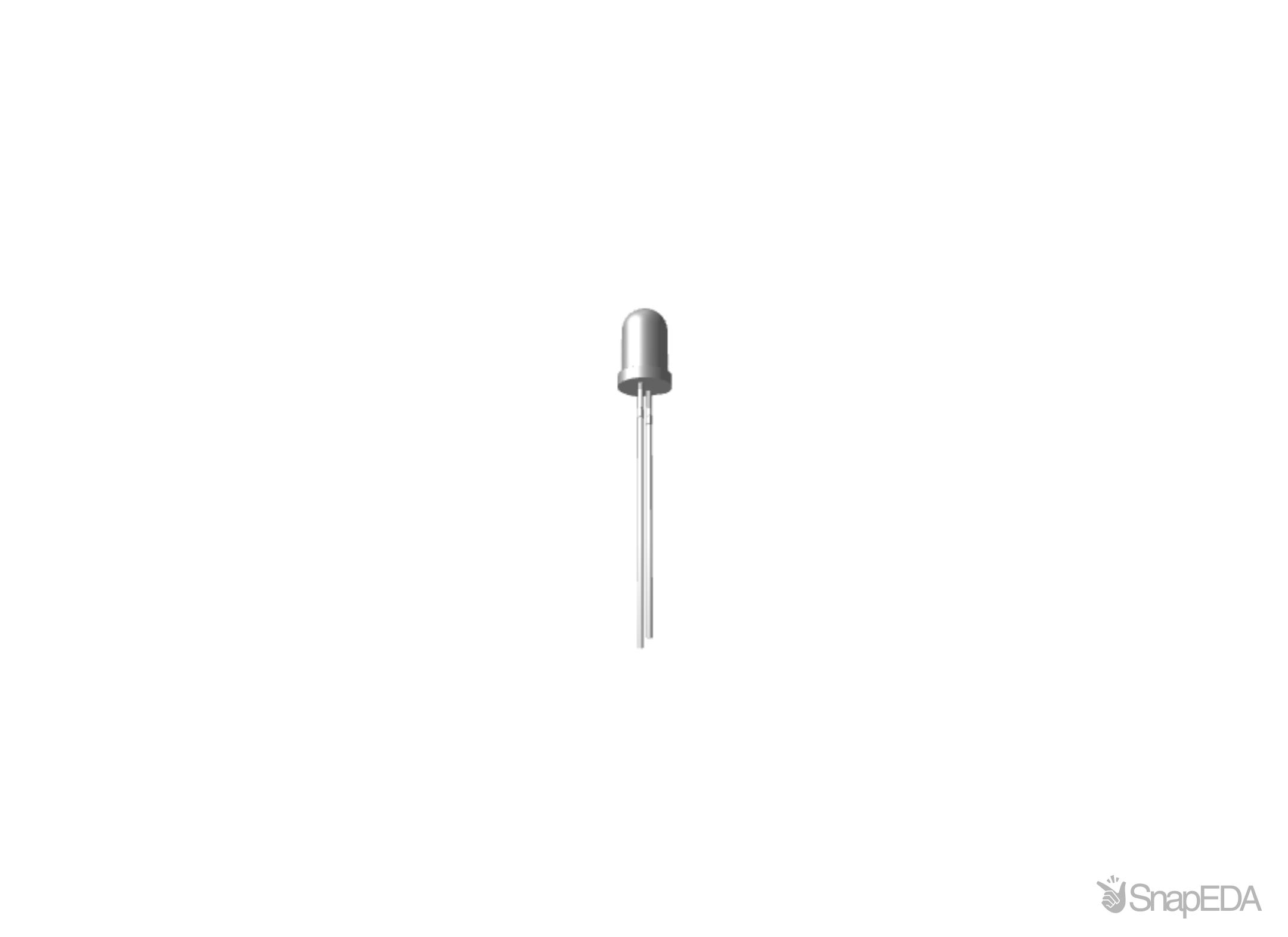

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TEFD4300
| Part Name | TEFD4300 |
| Manufacturer | Vishay Semiconductor |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 3.2 (mm) |
| Mounting Type | Through Hole |
| Diode Material | Si |
| Maximum Wavelength Detected | 1120 (nm) |
| Height | 4.5 (mm) |
| Minimum Wavelength Detected | 350 (nm) |
| Spectrum S Detected | Infrared |
| Package Type | T-1 |
| Amplifier Function | No |
| Wavelength Of Peak Sensitivity | 950 (nm) |
| Number Of Pins | 2 |
Inventory for the TEFD4300 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
443
|
|
Visit Site | |
|
★ Featured
|
31,000
|
1,520 x $0.23
|
Visit Site |
No issues have been reported for the TEFD4300
