TEMT1030

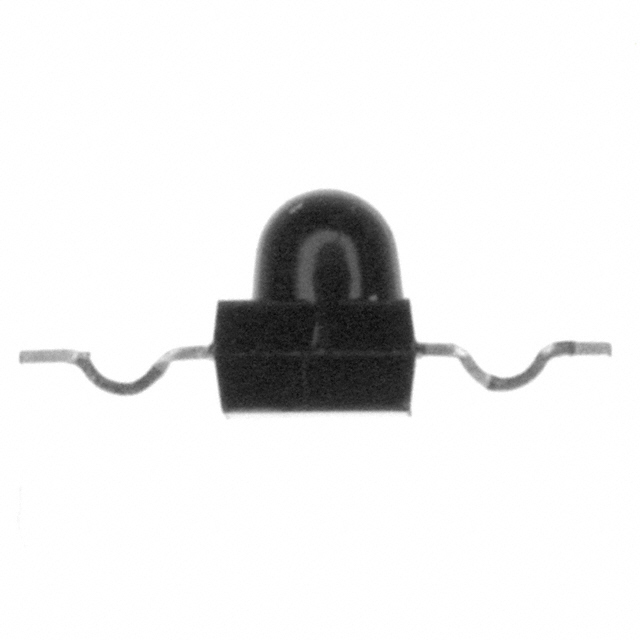

PHOTOTRANSISTOR, NPN, OPTICAL SENSOR; Transistor Polarity:NPN; Wavelength Typ:880nm; Power Consumption:100mW; Viewing Angle:15°; Transistor Case Style:SMD; No. of Pins:2; MSL:MSL 2 - 1 year; Current Ic Typ:7mA; Half Angle:15°; Nom Sensitivity @ mW/cm²:7mA @ 1mW / cm²; Operating Temperature Range:-40°C to +85°C; Package / Case:TO-5; Peak Spectral Response Wavelength:950nm; Rise Time:2µs; Transistor Type:Photo; Voltage Vcc:5V
Availability: In Stock
Package Type: TO-5
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TEMT1030 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

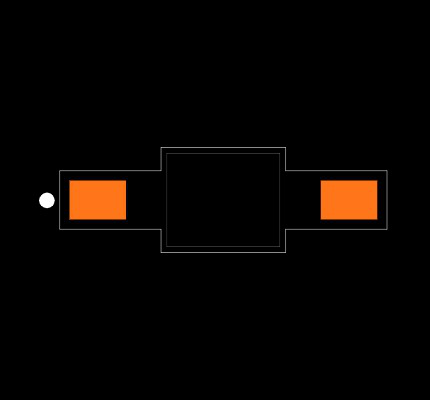

Footprint
