TEP 40-3618UIR
40 Watt DC/DC converter, railway, 12:1 input, 3000VAC isolation, PCB-Mount, quarter-brick package
Availability: Out of Stock
Package Type: QUARTER-BRICK PACKAGE
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TEP 40-3618UIR by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

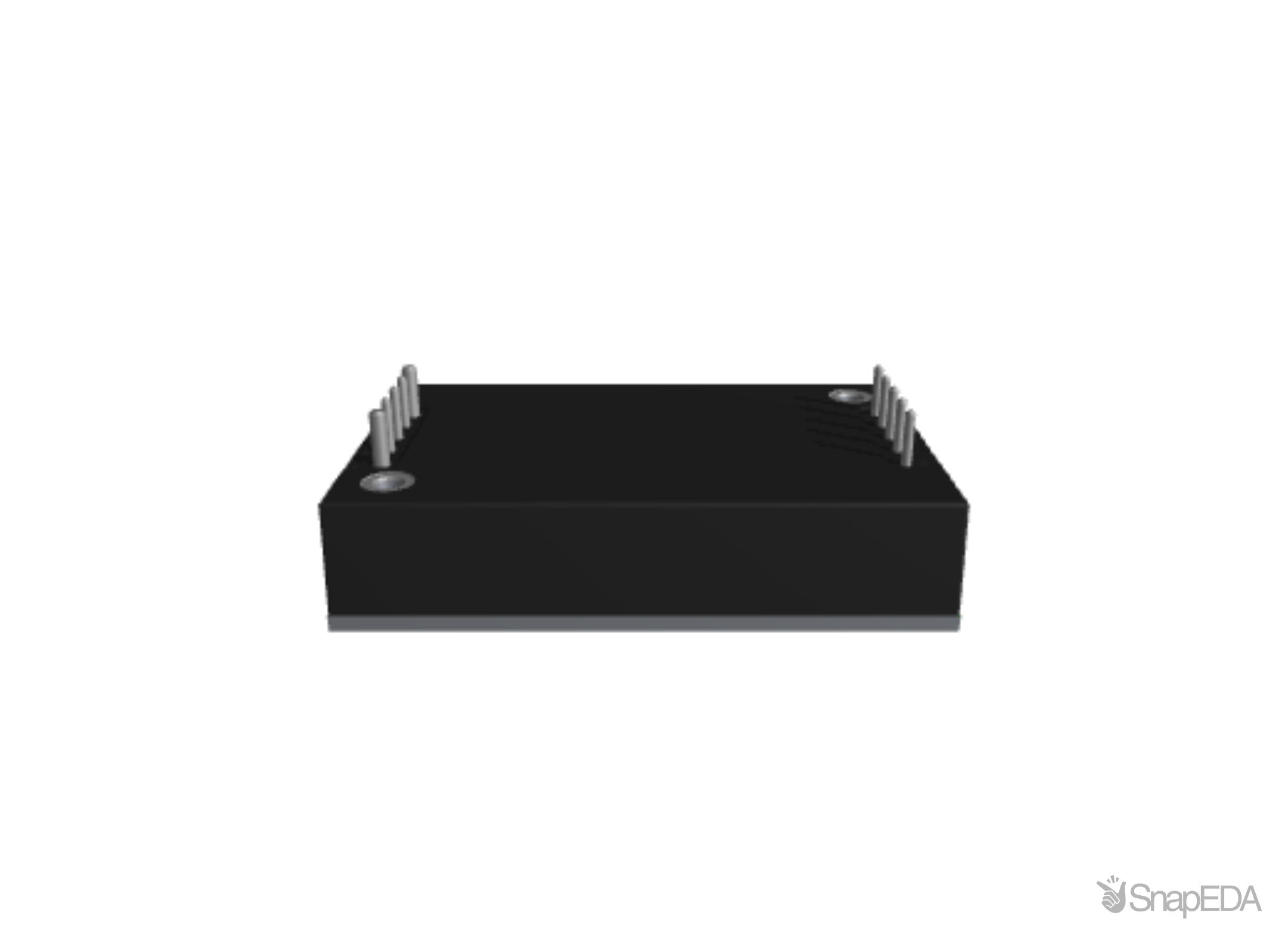

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TEP 40-3618UIR
| Part Name | TEP 40-3618UIR |
| Manufacturer | Traco Power |
| Category | Electronic Components |
| Number of Outputs | single |
| Product Width | 36.8 |
| GTIN | 7613441062051 |
| Mounting Type | PCB Mount |
| Adjustable output? | Yes |
| Isolation Voltage Input and Output (V) | 3000 VAC |
| Power | 40.0 |
| Insulation System | Reinforced Insulation |
| REACH | Yes |
| Product Height | 12.7 |
| Efficiency | 91.0 |
| Compatible Accessories | TCK-103,TEP-HS2,TEP-HS3,TEP-HS4,TEP-HS5 |
| Housing Type | Plastic Case |
| Remote on-off function? | Yes |
| Product Length | 57.9 |
| ESD Sensitive | No |
| Iout | 830 |
| Warranty Period | 3-year |
| Temperature Range Max. | 85 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | QuarterBrick |
| RoHS | Yes |
| Vout | 48 |
| Family | DC/DC Converter isolated, regulated |
| Series Name | TEP 40UIR |
| Lifecycle Status | Active |
| Vin | 9-75 |
| high_runner | TRUE |
| Weight | 64.0 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the TEP 40-3618UIR
